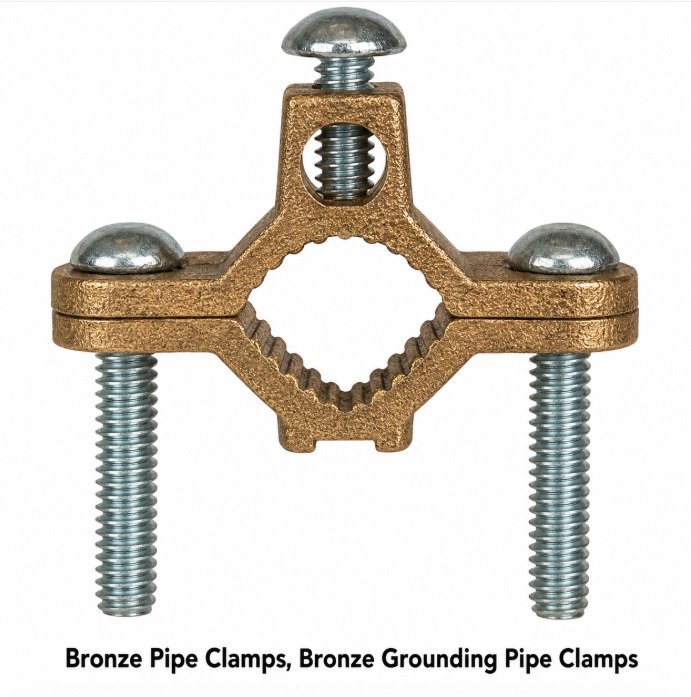

Bronze Pipe Clamps for Grounding
Cable Glands India manufactures Bronze Pipe Clamps for Grounding, used to bond earth conductors to metallic water pipes, structural pipe columns, casing pipes, and process pipework as part of a facility earthing and bonding scheme. These clamps wrap fully or partially around the pipe circumference, providing a secure mechanical grip and full-contact electrical bond regardless of pipe diameter or surface curvature. Electrical contractors, industrial plant engineers, and utility maintenance teams specify bronze pipe clamps wherever a round pipe, rather than a flat tape or rod, forms the bonding point in an earthing or equipotential bonding network.
Price: US$ 12.50 per kilogram | Custom pricing available for bulk and OEM orders
Product Overview
Function of Pipe Clamps in Earthing and Bonding
A pipe clamp bonds an earth conductor or bonding jumper to a metallic pipe, ensuring the pipe is held at the same electrical potential as the rest of the earthing network. This is required both for personnel safety, where a metallic water or gas pipe could otherwise become energised during a fault, and for corrosion control, where consistent bonding limits stray current effects on buried pipework.
Bronze Construction and Corrosion Resistance
Our pipe clamps are manufactured from C83600 and C95400 bronze alloys, chosen for their combination of electrical conductivity and long-term corrosion resistance in damp plant rooms, buried pits, and outdoor pipe runs where the clamp cannot be easily inspected or replaced.
Adjustable Band Clamp Variant
The adjustable band clamp uses a curved bronze band with a tightening mechanism, allowing a single clamp size to accommodate a range of pipe diameters, which simplifies stocking for contractors working across multiple pipe sizes on a site.
Fixed Diameter Clamp Variant
Fixed diameter clamps are cast to match a specific standard pipe outer diameter precisely, providing maximum contact area and clamping force for permanent, high-integrity bonding points on critical process or utility pipework.
Split Clamp Variant for Existing Pipework
Split, two-piece clamp designs allow installation around an existing pipe without disconnecting or cutting the pipe run, which is particularly useful for retrofitting earthing bonds onto live water, gas, or process piping.
Terminal Lug Integration
Most pipe clamps are supplied with an integrated terminal lug or stud, allowing a bonding conductor to be bolted directly to the clamp without requiring a separate connector, reducing the number of joints in the bonding path.
Bimetallic Considerations
Where the pipe material is steel, galvanized steel, or aluminum, tin-plated bronze clamp bodies or bimetallic isolation washers are available to minimise galvanic corrosion risk at the clamp-to-pipe interface.
Key Features
- Adjustable band and fixed diameter clamp designs
- Cast bronze body for long-term corrosion resistance
- Split clamp option for installation on existing pipework
- Integrated terminal lug for direct conductor bonding
- Suitable for water, gas, process, and structural pipe bonding
- Compliant with IS 3043 and IEC 62561 earthing standards
Full-Circumference Contact
Band-style clamps distribute clamping force around a greater portion of the pipe circumference than a simple bolt-on lug, improving contact stability on pipes subject to vibration or thermal expansion.
Corrosion Performance on Buried and Damp Pipework
Bronze construction resists the corrosion that quickly degrades plated steel clamps in damp trenches, pits, and plant rooms, maintaining a reliable bonding connection over decades of service.
Retrofit Installation Without Pipe Cutting
Split clamp designs allow bonding to be added to existing, already-installed pipework without shutting down or cutting the pipe run, reducing installation disruption on active facilities.
Compatibility Across Pipe Materials
Pipe clamps are suitable for bonding to steel, galvanized steel, cast iron, and copper pipework, with bimetallic protection options available where dissimilar metal contact is a concern.
Reduced Joint Count
Integrated terminal lugs eliminate the need for a separate connector between the clamp and the bonding conductor, reducing the number of mechanical joints and associated resistance points in the bonding path.
Long Service Life
Correctly installed bronze pipe clamps require minimal maintenance and typically remain serviceable for the full operational life of the pipework they bond.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Bronze (C83600 / C95400) |
| Pipe Diameter Range | 15 mm to 150 mm (adjustable and fixed variants) |
| Clamp Types | Adjustable band, fixed diameter, split clamp |
| Terminal | Integrated lug / stud, M6-M12 |
| Contact Resistance | < 50 micro-ohms |
| Fault Current Rating | Up to 3,000 A (0.5 sec) |
| Operating Temperature | -40C to +110C |
| Electrical Conductivity | 12-15% IACS |
| Surface Finish | Natural bronze / tin-plated |
Bronze Alloy Grade Reference
| Standard | Grade | Composition | Typical Use |
|---|---|---|---|
| ASTM B584 | C83600 | Cu-Sn-Zn-Pb (Red Bronze) | General pipe bonding clamps |
| ASTM B148 | C95400 | Cu-Al-Fe (Aluminum Bronze) | Heavy-duty industrial clamps |
| BS 1400 | LG2-C | Leaded Gunmetal | European supply |
| IS 318 | Grade-2 Bronze | Indian Standard Bronze | Domestic utility projects |
International Equivalent Standards
| Region | Standard | Scope |
|---|---|---|
| India | IS 3043 | Code of practice for earthing |
| International | IEC 62561 | Lightning protection component testing |
| USA | UL 467 | Grounding and bonding equipment |
| Europe | BS EN 62561 | Earthing component compliance |
Product Types / Variants
| Type | Description | Typical Application |
|---|---|---|
| Adjustable Band Clamp | Fits a range of pipe diameters | General purpose pipe bonding |
| Fixed Diameter Clamp | Cast to a specific pipe size | Permanent high-integrity bonding points |
| Split Clamp | Two-piece, no pipe cutting required | Retrofit onto existing pipework |
| Lug-Integrated Clamp | Built-in terminal lug | Direct conductor bolting |
Applications in Industry
Water Service Pipe Bonding
Electrical contractors use pipe clamps to bond incoming metallic water service pipes to the building main earthing terminal as required by national wiring regulations.
Industrial Process Piping
Process plants use pipe clamps to bond pipe racks and process pipework into the plant earthing and static discharge network, particularly in areas handling flammable materials.
Substation and Utility Pipework
Utilities use pipe clamps to bond cooling water pipes, gas pipes, and structural pipe supports within substations to the station earth grid.
Cathodic Protection and Stray Current Control
Pipe clamps provide defined bonding points used in cathodic protection testing and stray current mitigation schemes on buried metallic pipelines.
Commercial and Residential Building Earthing
Building services engineers use pipe clamps to bond structural steel pipe columns, HVAC pipework, and plumbing systems into the overall building earthing scheme.
Manufacturing Process
| Stage | Method | Quality Check |
|---|---|---|
| Alloy Verification | Spectroscopic analysis | Composition certificate |
| Casting | Sand / gravity die casting | Porosity inspection |
| CNC Machining | Band radius and lug machining | Pipe fit tolerance check |
| Thread Cutting | Terminal stud / bolt threading | Go/No-go gauge testing |
| Surface Finishing | Tumbling / tin plating (optional) | Coating thickness test |
| Final Inspection | CMM dimensional audit | Conductivity and clamp force test |
| Packing | Anti-corrosion wrap | Documentation check |
Quality Standards and Certifications
ISO 9001:2015 Quality Management, IS 3043 design compliance, IEC 62561 component testing, UL 467 grounding equipment compliance, RoHS material compliance, and CE marking for European supply. Full material test certificates and dimensional reports are issued with every shipment.
Why Choose Cable Glands India
Wide Pipe Diameter Coverage
Our adjustable and fixed diameter clamp ranges cover pipe sizes from 15 mm to 150 mm, supporting most water, gas, and process pipe bonding requirements from a single supplier.
Bronze Metallurgy Expertise
Three decades of bronze and brass casting experience ensures consistent alloy quality and mechanical properties batch after batch.
Direct-Manufacturer Pricing
No distributor markup; volume pricing for utility, industrial, and OEM frame orders. Price: US$ 12.50 per kilogram.
Global Compliance Documentation
Every order ships with IS 3043 and IEC 62561 conformity paperwork required for utility, industrial, and EPC procurement approval.
Frequently Asked Questions
Q1: What is a pipe clamp used for in earthing?
It bonds an earth conductor or bonding jumper to a metallic pipe, keeping the pipe at the same electrical potential as the rest of the earthing network for safety and stray current control.
Q2: What pipe sizes are supported?
Our clamps cover pipe diameters from 15 mm to 150 mm across adjustable band and fixed diameter variants.
Q3: Can a clamp be installed without cutting the pipe?
Yes, split, two-piece clamp designs allow installation around existing pipework without disconnecting or cutting the pipe run.
Q4: Why choose bronze over plated steel clamps?
Bronze resists corrosion in damp, buried, or poorly ventilated locations far better than plated steel, maintaining conductivity over decades of service.
Q5: Do the clamps include a terminal for the conductor?
Most designs include an integrated terminal lug or stud, allowing the bonding conductor to bolt directly to the clamp.
Q6: Are these suitable for gas pipe bonding?
Yes, subject to local code requirements, bronze pipe clamps are commonly used for bonding metallic gas pipework as part of building earthing systems.
Q7: What standards do these clamps meet?
Our pipe clamps are manufactured to support IS 3043 and IEC 62561 earthing and lightning protection design requirements.
Q8: Do you supply test certificates?
Yes, every batch includes material composition, dimensional, and contact-resistance test certificates.
Q9: What is the lead time?
Standard orders ship in 4 to 6 weeks; expedited 2 to 3 week production is available.
Q10: Do you support OEM branding?
Yes, private labeling and custom packaging are available for distributors and OEM customers.
Equivalent Terms in Other Languages
| Language | Equivalent Terms |
|---|---|
| Spanish | Abrazadera de bronce para puesta a tierra de tuberia, Grapa de tierra para tubo |
| Russian | Bronzovyi khomut dlya zazemleniya truby, Zazhim dlya zazemleniya truboprovoda |
| French | Collier de mise a la terre en bronze pour tuyau, Pince de terre pour tuyauterie |
| Portuguese | Braçadeira de bronze para aterramento de tubo, Grampo de terra para tubulacao |
| Italian | Collare in bronzo per messa a terra tubo, Morsetto di terra per tubazione |
Linked Parts and Related Terms
Bronze Grounding Connectors for Transformers, Bronze Ground Rod Clamps, Acorn Clamps, Brass Bronze Square Earth Tape Clamps, Brass DC Earth Tape Clips, Split Pipe Clamp, Bonding Jumper, Equipotential Bonding.
