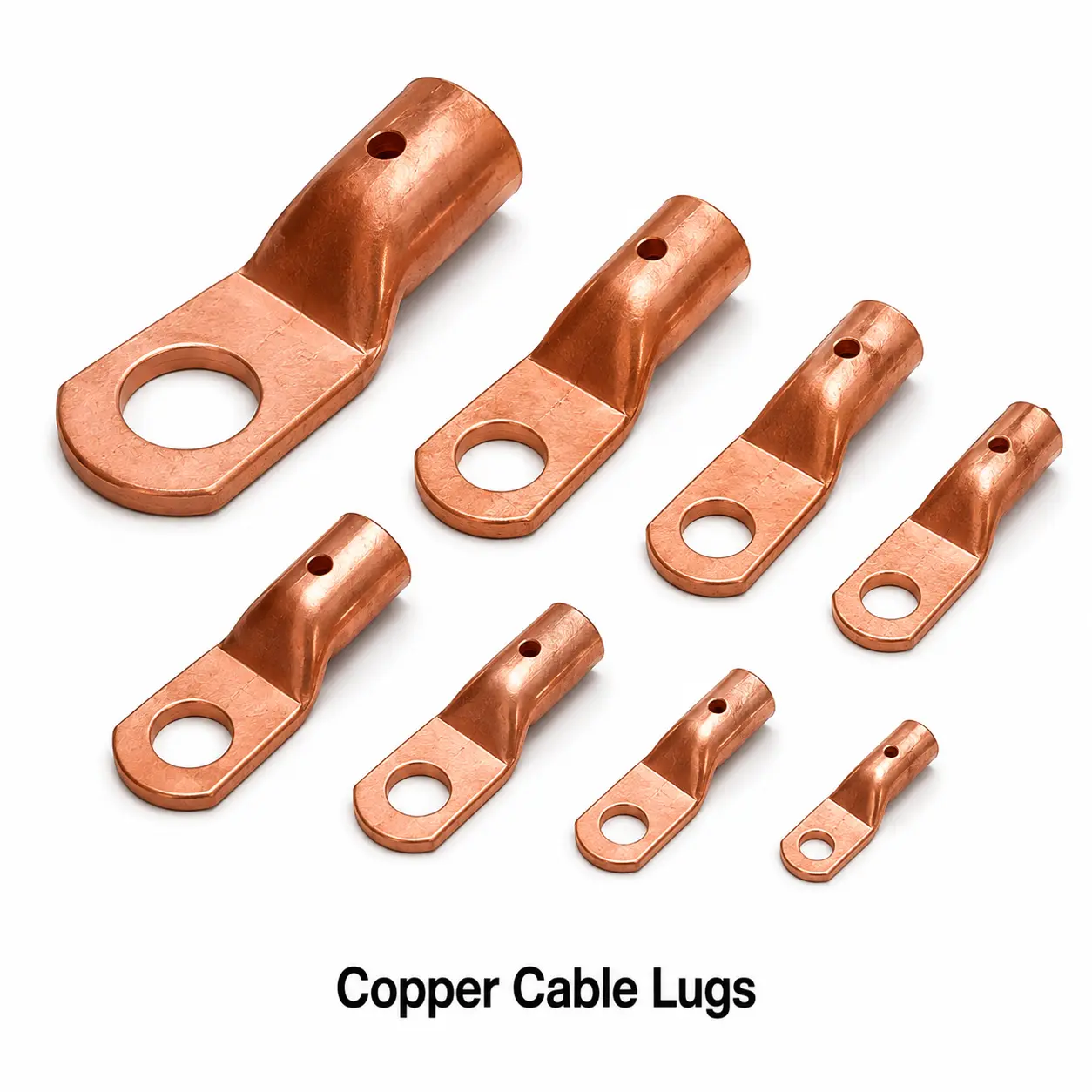

Copper Cable Lugs – Copper Terminal Lugs for Power and Control Cable Termination
‘
Copper Lugs, Copper cable Lugs, Copper Tubular Lugs, Copper Cable Terminals
Cable Glands India manufactures copper cable lugs, also specified as copper terminal lugs, copper crimp lugs, or copper compression lugs, used to terminate stranded and solid copper conductors onto studs, bus bars, switchgear terminals, and equipment lugs across power distribution, control wiring, and OEM panel-building applications. Each lug consists of a barrel formed from seamless copper tube, sized to accept a specific conductor cross-section, and a flat tongue drilled to match a stud or bolt diameter, crimped or compressed with a hydraulic or mechanical tool to form a permanent, low-resistance electrical and mechanical joint. Electrical OEMs, EPC contractors, power utilities, and distributors specify copper lugs wherever a code-compliant, vibration-resistant termination is required between a copper conductor and a bolted connection point, and wherever consistent batch-to-batch crimp performance must be demonstrated through test certification.
Price: US$ 15.90 per kilogram | Custom pricing available for bulk and OEM orders
Product Overview
Function of a Cable Lug in Conductor Termination
A cable lug converts the multi-strand or solid end of a copper conductor into a bolted connection point compatible with a stud, bus bar, transformer bushing, switchgear terminal, or equipment lug. The barrel section accepts the stripped conductor and is compressed radially or hexagonally with a crimping tool until the strands cold-weld together and to the barrel wall, producing a joint with conductivity and mechanical pull-out strength equal to or exceeding the parent conductor. The tongue section, whether tube type or open flag type, is then bolted to the mating terminal, completing a connection intended to remain gas-tight and low-resistance for the operating life of the installation.
High-Conductivity Copper Barrel Construction
Cable Glands India manufactures lug barrels and tongues from electrolytic tough pitch copper and oxygen-free copper achieving 100 percent IACS conductivity, matched to the conductivity of the copper conductor being terminated. Using copper rather than aluminum or brass avoids galvanic and thermal expansion mismatch at the crimp interface, and keeps the contact resistance of the termination close to the bulk resistance of the conductor itself, which is important on power and control circuits where voltage drop and heat rise at the termination point are design considerations.
Tube Type, Pin, and Flag Barrel Types
The barrel is formed from a seamless drawn copper tube rather than folded or stamped sheet metal, giving a uniform wall thickness and consistent bore around the full circumference for even crimp compression. Tube type barrels are supplied in bare electrolytic copper or electro-tin plated copper, matched to the conductor size and installation environment. Pin type and flag type lugs are open-sided, allowing faster installation on terminal blocks and bus bars where the stud is fixed and rotation of the lug is restricted by adjacent hardware, and are common on switchgear and panel board terminations.
Crimp Barrel and Inspection Window Design
Barrels are manufactured with a controlled wall thickness and, on larger sizes, an inspection window or witness hole that lets an installer visually confirm the conductor is fully inserted before crimping. Barrel length and internal diameter are matched to the specified conductor range so that the correct crimping die produces a uniform, code-compliant compression across the full cross-section, avoiding voids that would raise contact resistance or reduce pull-out strength.
Tin Plating and Corrosion Protection
Lugs supplied for outdoor, marine, or corrosive industrial environments are electro-tin plated over the base copper, which prevents oxidation of the contact surface, reduces the risk of galvanic corrosion when bolted to aluminum or plated steel hardware, and maintains a stable contact resistance over the service life of the termination. Bare copper lugs remain available where tin plating is not specified or where the application calls for a bare copper finish.
Compression and Mechanical Set-Screw Options
In addition to standard crimp barrels, Cable Glands India supplies mechanical lugs with a set-screw or shear-head bolt in the barrel, allowing termination without a hydraulic crimping tool. These are specified in field and maintenance applications where crimping tools are not available, or where a termination may need to be removed and reused without cutting back the conductor.
Cable Range and Stud Hole Compatibility
Standard copper cable lugs are manufactured across the full range of common conductor sizes and stud hole diameters used in power and control wiring, from small control cable terminations up to heavy power cable sizes used in switchgear and transformer connections, with two-hole and long-barrel variants available for higher current and higher vibration applications.
Dual-Rated and Bimetallic Lug Considerations
Pure copper lugs are intended for copper-to-copper terminations only. Where an aluminum conductor must be terminated, a separate AL9CU mechanical lug or bimetallic copper-aluminum transition lug is required to avoid direct galvanic contact between the two metals; Cable Glands India manufactures aluminum lay-in and mechanical lugs separately for this purpose and can advise on the correct lug family for mixed-conductor installations.
Compliance with Termination Standards
Copper cable lugs are manufactured to dimensional and performance references drawn from UL 486A-486B, IS 8309, DIN 46234 and 46235, and IEC 61238-1, which govern crimp lug dimensions, stud hole sizing, and pull-out and resistance test methods, allowing the lugs to be specified into installations that must meet these national and international wiring standards.
Key Features
- Electrolytic copper barrel and tongue construction for 100 percent IACS conductivity
- Tube type (bare copper and tin-plated), pin type, flag type, and two-hole configurations
- Hydraulic crimp, mechanical crimp, and set-screw termination options
- Inspection window on larger barrel sizes for crimp verification
- Tin plated and bare copper finish options
- Stud hole sizes matched to common bus bar and terminal block bolt diameters
- Long-barrel and two-hole variants for high-vibration applications
- Manufactured to UL 486A-486B, IS 8309, and DIN 46234/46235 dimensional references

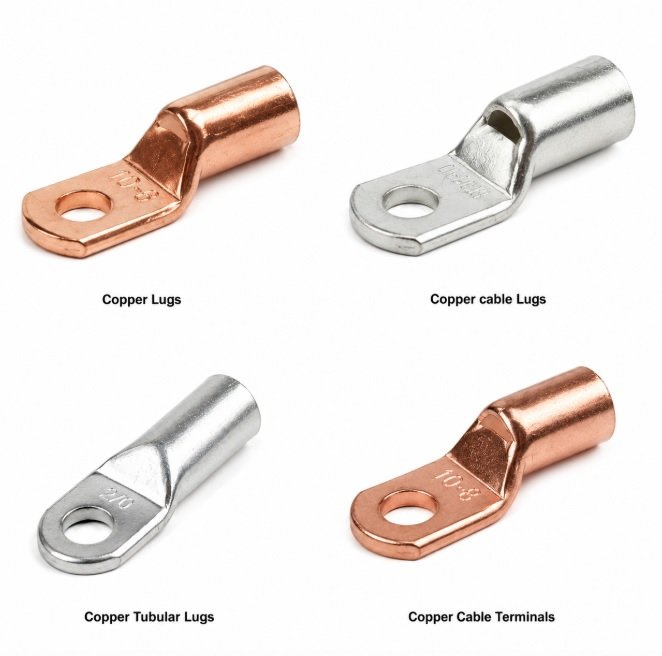

Tube Type Crimp Lugs – Bare Copper and Tin-Plated
Tube type crimp lugs are manufactured from a seamless drawn or extruded copper tube rather than stamped sheet metal, giving a one-piece barrel with uniform wall thickness for consistent hydraulic or mechanical crimping across the full conductor range. Cable Glands India supplies tube type lugs in bare electrolytic copper for clean indoor panel and switchgear connections, and in electro-tin plated copper for outdoor, marine, or corrosive installations where the plated surface resists oxidation and reduces galvanic attack when bolted to aluminum or plated steel hardware, with matched washers available on request.
Pin Type Terminal Lugs
Pin type lugs terminate the conductor into a round pin rather than a flat tongue, and are inserted into a matching socket or terminal block aperture rather than bolted under a nut. These are common on control wiring and instrumentation terminal blocks where a compact, tool-free connection is required and where the terminal block itself provides the clamping force rather than a separate nut and bolt.
Flag Type and Offset Lugs
Flag type lugs position the tongue at an angle or offset from the barrel axis, allowing the conductor to approach the terminal from the side rather than head-on. This is specified where panel space is restricted or where several conductors must be stacked onto a single stud without the barrels colliding, a common requirement in switchgear cubicles and motor control centers.
Two-Hole Lugs for Vibration Resistance
Two-hole lugs use two bolts rather than one to secure the tongue to the mating pad, which prevents the lug from rotating around a single stud under vibration or fault-current electromagnetic forces. These are specified on transformer bushings, generator terminals, and heavy power cable connections in accordance with NEMA pad spacing references.
Battery and Welding Cable Lugs
Heavy-gauge copper lugs sized for battery cable and welding cable applications are supplied with larger barrel diameters to accept the higher strand count of flexible battery and welding cable, along with correspondingly sized tongues for battery terminal posts, bus connections, and welding return clamps.
Heat Shrink and Insulated Lug Options
Lugs are available with a pre-fitted heat shrink or vinyl insulating sleeve over the barrel, which insulates the crimp area and provides strain relief and moisture sealing where the termination is exposed to weather, vibration, or where accidental contact with adjacent conductors must be prevented.
Technical Specifications
| Parameter | Typical Range / Value |
|---|---|
| Conductor range | 1.5 sq mm to 800 sq mm (AWG 16 to 500 MCM) |
| Barrel type | Tube type (bare copper / tin-plated), pin type, flag type, two-hole |
| Termination method | Hydraulic crimp, mechanical crimp, set-screw |
| Stud hole diameter range | M4 to M20 (or NEMA equivalent for two-hole pads) |
| Base material | Electrolytic tough pitch copper / oxygen-free copper |
| Surface finish | Bare copper or electro-tin plated |
| Conductivity | 100% IACS minimum |
| Operating temperature | -40 degrees C to +150 degrees C (bare copper) |
| Standard packaging | Bulk carton, size-wise labelled poly bags |
UK/DIN Metric Size vs American Wire Gauge (AWG) Equivalent
| UK/DIN Metric Size (mm²) | AWG / MCM Equivalent |
|---|---|
| 1.5 | 16 AWG |
| 2.5 | 14 AWG |
| 4 | 12 AWG |
| 6 | 10 AWG |
| 10 | 8 AWG |
| 16 | 6 AWG |
| 25 | 4 AWG |
| 35 | 2 AWG |
| 50 | 1/0 AWG |
| 70 | 2/0 AWG |
| 95 | 3/0 AWG |
| 120 | 4/0 AWG |
| 150 | 300 MCM |
| 185 | 350 MCM |
| 240 | 500 MCM |
| 300 | 600 MCM |
| 400 | 800 MCM |
Note: AWG/MCM equivalents are standard nominal industry conversions; exact cross-sectional equivalence may vary slightly by manufacturer since AWG is a diameter-based gauge system while mm² is an area-based metric measurement.
Raw Material Grades
| Grade | Alloy Type | Key Properties |
|---|---|---|
| C11000 (ETP Copper) | Electrolytic tough pitch copper | 100% IACS conductivity, excellent formability |
| C10100 / C10200 (OFE / OF Copper) | Oxygen-free copper | High conductivity, low embrittlement risk |
| C12200 (DHP Copper) | Phosphorus deoxidized copper | Good weldability, moderate conductivity |
International Equivalent Standards
| Country / Standard Body | Equivalent Reference |
|---|---|
| USA – UL / NEMA | UL 486A-486B (wire connectors), NEMA CC1 |
| India – IS | IS 8309 (copper lugs and ferrules for cables) |
| Germany – DIN | DIN 46234 (cable lugs), DIN 46235 (tongue dimensions) |
| Europe – EN | EN 13600 (copper tubes/rods reference for raw stock) |
| IEC | IEC 61238-1 (crimped connections test methods) |
Product Types and Variants
| Type | Description | Typical Use |
|---|---|---|
| Tube type crimp lug | Seamless copper tube barrel, bare or tin-plated | Bus bar, transformer, and grounding connections |
| Pin type lug | Round pin terminal, tool-free insertion | Control wiring and instrumentation terminal blocks |
| Flag type lug | Offset tongue angle | Stacked panel and switchgear terminations |
| Two-hole lug | Dual bolt hole, NEMA pad spacing | Transformer bushings, generator terminals |
| Battery / welding cable lug | Large barrel for flexible cable | Battery banks, welding sets, DC power |
| Insulated lug | Heat shrink or vinyl sleeve fitted | Exposed or vibration-prone terminations |
Applications in Industry
Power Distribution and Switchgear
Copper cable lugs terminate incoming and outgoing feeder cables onto switchgear bus bars, circuit breaker terminals, and isolator connections in distribution boards, motor control centers, and substations, where a code-compliant crimp is required to carry rated and fault current without excessive heating.
Transformer and Generator Terminations
Two-hole and tube type lugs connect power cables to transformer bushings and generator terminal studs, where NEMA pad spacing and vibration resistance are design requirements referenced in utility and OEM specifications.
Renewable Energy and Solar Installations
Copper lugs terminate DC combiner cables, inverter connections, and grounding conductors in solar farms and battery energy storage installations, where corrosion-resistant tin-plated lugs are commonly specified for outdoor exposure.
Automotive, Marine, and Battery Systems
Heavy-gauge battery lugs terminate cranking, traction, and marine battery cables onto battery posts and bus connections, where high strand-count flexible cable and vibration resistance are important.
OEM Panel Building and Control Wiring
Electrical OEMs specify pin type and small tube type lugs for control wiring terminations onto terminal blocks and relay panels, where compact size and tool-free or low-force insertion speeds up panel assembly.
Industrial Earthing and Bonding
Tube type copper lugs terminate earth continuity and bonding conductors onto structural steel, cable trays, and earth bars, forming the bolted connection point referenced in plant earthing and bonding schedules.
Manufacturing Process
Cable Glands India manufactures copper cable lugs from electrolytic copper rod and strip through a sequence of cold forming, barrel tube drawing or extrusion, and precision stamping of the tongue profile, followed by brazing or seamless barrel forming to eliminate longitudinal seams that could reduce crimp integrity. Stud holes are punched or drilled to the specified diameter, and the barrel bore is sized and reamed to the target conductor range before parts are cleaned, optionally tin plated by electro-deposition, and dimensionally inspected. Each batch is sample-tested for barrel wall thickness, tongue hole diameter, and where required, crimped and pull-tested to confirm resistance and mechanical retention values meet the referenced standard before packing and dispatch. Finished lugs are batch coded so that material and test records remain traceable back to the raw copper heat used in production.
Quality Standards and Certifications
| Standard / Certification | Scope |
|---|---|
| ISO 9001 | Quality management system certification |
| UL 486A-486B | Reference performance basis for wire connectors |
| IS 8309 | Indian standard reference for copper cable lugs |
| DIN 46234 / 46235 | Dimensional reference for cable lugs and tongues |
| RoHS | Restriction of hazardous substances compliance on request |
Why Choose Cable Glands India
- In-house copper barrel forming and tongue stamping for full process control
- Full conductor range from control cable to heavy power cable sizes from a single supplier
- Bare copper and tin-plated finish options manufactured to order
- Batch-wise dimensional and resistance test certificates available
- Custom barrel length, stud hole size, and tongue geometry on request
- Competitive per-kilogram pricing with volume and OEM discounts
Frequently Asked Questions
Q1: What is a copper cable lug used for?
A copper cable lug terminates the stripped end of a copper conductor into a bolted or plug-in connection point on a bus bar, stud, or terminal block, providing a permanent low-resistance electrical and mechanical joint.
Q2: What is the difference between a tube type and a pin type lug?
A tube type lug is formed from a seamless copper tube barrel with a flat tongue bolted down under a stud, available in bare copper or tin-plated finish, while a pin type lug terminates into a round pin that plugs into a terminal block without a separate nut and bolt.
Q3: What conductor sizes are supported?
Standard copper cable lugs are manufactured from 1.5 sq mm control cable sizes up to 800 sq mm heavy power cable sizes, with custom barrel sizes available on request.
Q4: Should I choose tin-plated or bare copper lugs?
Tin-plated lugs are recommended for outdoor, marine, or corrosive environments and where the lug will be bolted to aluminum or plated steel hardware, while bare copper lugs are suitable for clean indoor panel and switchgear applications.
Q5: Can these lugs be installed without a hydraulic crimping tool?
Yes, mechanical set-screw lugs are available for field and maintenance terminations where a hydraulic crimping tool is not available or where the termination may need to be reused.
Q6: Are two-hole lugs required for transformer connections?
Two-hole lugs are commonly specified for transformer bushings and generator terminals because the second bolt hole prevents the lug from rotating under vibration or fault-current forces, in line with NEMA pad spacing references.
Q7: Do you supply insulated or heat shrink lugs?
Yes, lugs can be supplied with a pre-fitted heat shrink or vinyl sleeve for insulation, strain relief, and moisture sealing over the crimp barrel.
Q8: What standards do your copper cable lugs comply with?
Cable Glands India manufactures copper cable lugs to dimensional and performance references drawn from UL 486A-486B, IS 8309, DIN 46234/46235, and IEC 61238-1.
Q9: Can copper lugs be used on aluminum conductors?
No, pure copper lugs are intended for copper-to-copper terminations only. Aluminum conductors require a dedicated AL9CU mechanical lug or bimetallic transition lug to avoid galvanic corrosion at the joint.
Q10: What is the standard lead time?
Standard lead time is 4 to 6 weeks depending on quantity and configuration, with expedited options available for OEM and utility orders.
International Equivalent Terms
| Language | Equivalent Terms |
|---|---|
| Spanish | Terminales de cobre para cable, Conectores de compresion de cobre |
| Russian | Mednye kabelnye nakonechniki, Obzhimnye mednye klemmy |
| French | Cosses de cable en cuivre, Connecteurs a sertir en cuivre |
| Portuguese | Terminais de cobre para cabo, Conectores de compressao de cobre |
| Italian | Capicorda in rame, Connettori a crimpare in rame |
Linked Parts and Related Terms
Copper Cable Lug, Copper Terminal Lug, Copper Compression Lug, Tube Type Terminal, Two-Hole Lug, Battery Cable Lug, Copper Crimp Connector, Copper Ground Ferrule.
Related Products in this Category
Get a Quote – Copper Cable Lugs
Ready to source copper cable lugs for power distribution, control wiring, or OEM panel building applications? Our engineering team can recommend the correct barrel size and tongue type for your project.
Price: US$ 15.90 per kilogram | Custom pricing available for bulk and OEM orders
Email: sales@cableglandsindia.com
Phone / WhatsApp: +91-22-43449300
Website: www.cableglandsindia.com
Share your project specifications, required quantities, and preferred delivery timeline, and we will respond with a detailed quotation within one business day.
