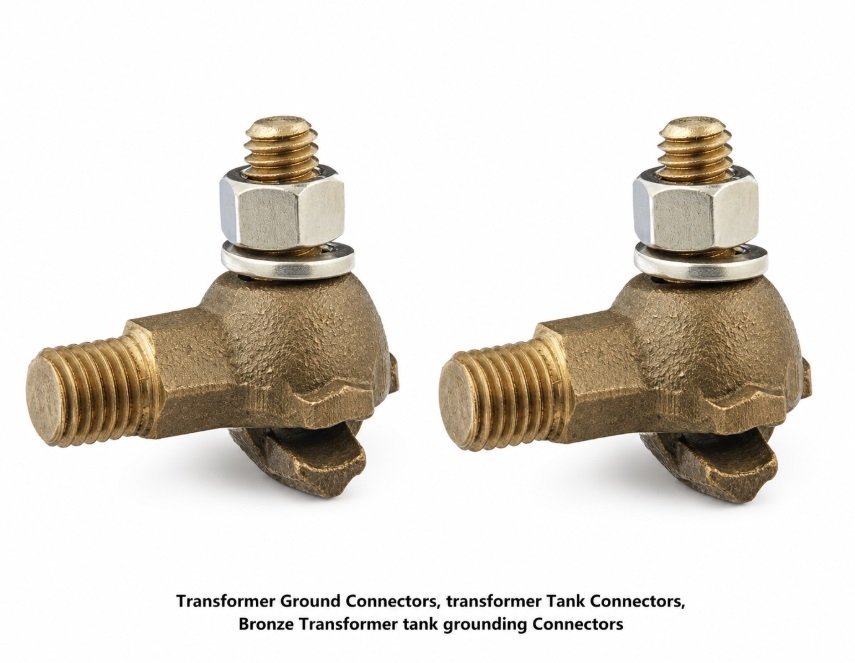

Bronze Grounding Connectors for Transformers – Transformer Tank Connectors

Cable Glands India manufactures Bronze Grounding Connectors for Transformers, also specified as Transformer Tank Connectors, engineered to bond transformer tanks, tap-changer housings, and conservator supports to the station earth grid. These connectors are machined from high-conductivity bronze alloys and supplied as bolted lugs, welded pads, and two-hole compression terminals for direct attachment to transformer tank walls. Power utilities, EPC contractors, and transformer OEMs specify our tank connectors for substation earthing because the bronze body resists oil contamination, thermal cycling, and outdoor corrosion over multi-decade transformer service life.

Price: US$ 12.50 per kilogram | Custom pricing available for bulk and OEM orders

Product Overview

Function within the Earthing System

A Transformer Tank Connector forms the mechanical and electrical bridge between a transformer metallic enclosure and the buried earth conductor or earth riser cable. Because transformer tanks carry fault current during internal faults and lightning surges, the connector must maintain low contact resistance and high mechanical clamping force across the transformer operating temperature range, which can exceed 90 degrees Celsius at the tank surface during full load operation combined with ambient heat. Correct tank earthing is a mandatory safety requirement in every substation design and is verified during commissioning tests before energisation.

Bronze as the Specified Material

Bronze grounding connectors are preferred over plain steel or galvanized fittings because bronze does not rust, does not require re-torquing after oxide formation, and maintains stable conductivity even when exposed to transformer oil seepage, dust, and coastal humidity. Our standard bronze grades are C83600 leaded red bronze and C95400 aluminum bronze, both cast and CNC finished to IS 3043 and IEEE 80 grounding recommendations. The alloy selection balances mechanical strength, casting quality, and long-term electrical stability under continuous outdoor exposure.

Bolted Tank Connectors

The bolted variant uses a flat bronze pad drilled to match the transformer manufacturer earthing pad hole spacing, typically two M10 or M12 holes, allowing direct bolt-on mounting to the tank wall boss without welding or hot work near an oil filled tank. This design is preferred for retrofit earthing upgrades where hot work permits are difficult to obtain on an energised or oil filled transformer.

Welded Pad Connectors

Where the transformer tank does not have a pre drilled earthing boss, a welded bronze pad connector is brazed or arc welded to a mild steel doubler plate, which is then stitch welded to the tank at the factory or during site retrofit under a controlled hot work permit. This variant is typically specified by transformer OEMs during original manufacture rather than as a field retrofit.

Two-Hole Compression Lugs

For stranded earth conductors terminating at the tank, our two hole bronze compression lugs accept 25 sq mm to 240 sq mm copper conductors, crimped under hydraulic pressure and bolted to the tank connector pad using a standard 45 mm or 57 mm hole spacing per ANSI or IEEE two hole pad convention. This ensures a mechanically stable, vibration resistant termination for the incoming earth cable.

Tap-Changer and Radiator Earthing

Separate smaller format tank connectors are supplied for bonding tap changer compartments, radiator banks, and conservator supports, each of which requires an independent bond back to the main tank earth point per IS 3043 clause 7 and IEC 61936-1. These auxiliary bonds prevent floating metal parts from developing a hazardous touch potential during a fault.

Corrosion and Oil Resistance

Bronze tank connectors are unaffected by transformer mineral oil, silicone fluid, or ester based dielectric fluids, and the alloy tin and lead content resists galvanic attack when in contact with the tank mild steel or aluminum surface, provided a bimetallic washer or approved joint compound is used at the interface.

Key Features

• Bolted and welded transformer tank earthing connectors in bronze
• Two-hole and single-hole bronze compression lug options
• Rated for continuous fault-current duty per IEEE 80
• Corrosion-proof performance in oil, humidity, and industrial atmospheres
• Compatible with 25 to 240 sq mm copper earth conductors
• Custom hole spacing to match OEM transformer tank bosses

Contact Resistance and Joint Stability

Every tank connector is machined to present a flat, low resistance mating face, keeping joint resistance below 50 micro-ohms when torqued to specification, which prevents localized heating at the tank to earth interface during sustained fault current flow. Low and stable contact resistance is verified during factory testing before dispatch.

Bolt Torque and Mechanical Retention

Standard M10 and M12 bronze bolted connectors are rated to withstand the specified installation torque without thread deformation, and the bronze body yield strength keeps the joint mechanically stable through years of vibration from on load tap changer operation and cooling fan cycling. Correct torque values are supplied with every installation datasheet.

Bimetallic Compatibility

Because transformer tanks are typically painted mild steel or, less commonly, aluminum, our connectors are supplied with tin plated contact faces or bimetallic isolation washers on request, preventing galvanic corrosion between the bronze fitting and the tank material at the point of contact. This extends joint service life in humid and coastal substations.

Outdoor and Substation-Grade Finish

All exposed connector surfaces receive a corrosion inhibiting finish suited to open air substation yards, and the bronze base metal itself does not require painting to remain serviceable, unlike galvanized steel alternatives that degrade once the zinc coating is breached.

Retrofit and OEM Supply

Connectors are available both as standalone retrofit kits for utilities upgrading existing transformer earthing and as OEM components supplied directly to transformer manufacturers for factory fitted tank earthing bosses.

Fault Current Withstand

Each connector design is validated for short duration fault current withstand matching typical distribution and power transformer fault levels, ensuring the connector does not degrade or loosen during a through fault event.

Technical Specifications

Bronze Alloy Grade Reference

International Equivalent Standards

Product Types / Variants

Applications in Industry

Power Transformer Substations

Utilities bond power and distribution transformer tanks to the station earth mat using these connectors to ensure operator safety and correct protection relay operation during tank faults.

Transformer OEM Manufacturing

Transformer builders specify bronze tank connectors as a factory-fitted earthing point, avoiding on-site hot work and ensuring every unit ships with a certified earthing terminal.

EPC Substation Construction

EPC contractors installing new substations use these connectors to complete the transformer-to-earth-grid bonding scope defined in the project earthing design.

Renewable Energy Substations

Wind and solar step-up transformers use the same tank connectors to meet grid-code earthing requirements at collector substations.

Industrial Captive Power Plants

Factories with dedicated transformer yards use tank connectors to bond distribution transformers into the plant overall earthing and lightning protection system.

Manufacturing Process

Quality Standards and Certifications

ISO 9001:2015 Quality Management, IEC 62561-1 component testing, IEEE 837 fault-current-tested connector design basis, UL 467 grounding equipment compliance, RoHS material compliance, and CE marking for European supply. Full material test certificates and dimensional reports are issued with every shipment.

Why Choose Cable Glands India

Transformer-Specific Engineering

Unlike generic earthing hardware suppliers, we design tank connectors to match actual transformer tank boss dimensions supplied by utilities and OEMs.

Bronze Metallurgy Expertise

Three decades of bronze and brass casting experience ensures consistent alloy quality batch after batch.

Direct-Manufacturer Pricing

No distributor markup; volume pricing for utility and OEM frame orders. Price: US$ 12.50 per kilogram.

Global Compliance Documentation

Every order ships with IEEE 80, IEC 62561-1, and IS 3043 conformity paperwork required for utility procurement approval.

Frequently Asked Questions

Q1: What is a Transformer Tank Connector used for?

It bonds the transformer metal enclosure to the station earth grid so fault current and lightning surges are safely discharged rather than raising the tank to a hazardous voltage.

Q2: Why bronze instead of galvanized steel?

Bronze does not rust or lose conductivity as its coating wears, making it more reliable over the 25 plus year life of a transformer installation.

Q3: Can connectors be matched to my transformer existing earthing boss?

Yes, we manufacture connectors to custom hole spacing and bolt size based on the OEM tank drawing you provide.

Q4: What conductor sizes are supported?

Standard lugs accept 25 sq mm to 240 sq mm copper conductors; larger sizes are available on request.

Q5: Is welding required for installation?

No, bolted pad connectors require no hot work; welded pad connectors are used only where a pre-drilled boss does not exist.

Q6: What is the fault current rating?

Standard connectors are rated up to 4,000 A for 0.5 seconds; higher ratings are available for large power transformers.

Q7: Do you supply test certificates?

Yes, every batch includes material composition, dimensional, and contact-resistance test certificates.

Q8: What is the lead time?

Standard orders ship in 4 to 6 weeks; expedited 2 to 3 week production is available.

Q9: Are these suitable for outdoor substations?

Yes, the bronze construction is designed for uncontrolled outdoor exposure without additional coating.

Q10: Do you support OEM branding?

Yes, private labeling and custom packaging are available for transformer manufacturers.

Equivalent Terms in Other Languages

Linked Parts and Related Terms

Bronze Grounding Couplers, Earth Rod Couplers, Ground Rod Clamps, Acorn Clamps, Square Earth Tape Clamps, DC Earth Tape Clips, Bronze Pipe Clamps, Two-Hole Compression Lugs, Earthing Boss, Tank Earthing Terminal, Bimetallic Washer.

Related Products in this Category

• Bronze Grounding Couplers, Earth Rod Couplers, Threaded Couplers
• Bronze Ground Rod Clamps – Acorn Clamps
• Brass / Bronze Square Earth Tape Clamps
• Brass DC Earth Tape Clips
• Bronze Pipe Clamps for Grounding

Get a Quote – Bronze Grounding Connectors for Transformers

Ready to source high-quality Bronze Grounding Connectors for Transformers or Transformer Tank Connectors for your next project? Our team is available to provide technical recommendations, customised quotations, and fast order processing.

Price: US$ 12.50 per kilogram | Custom pricing available for bulk and OEM orders

Email: sales@cableglandsindia.com
Phone / WhatsApp: +91-22-43449300
Website: www.cableglandsindia.com

Share your project specifications, required quantities, and preferred delivery timeline, and we will respond with a detailed quotation within one business day.
