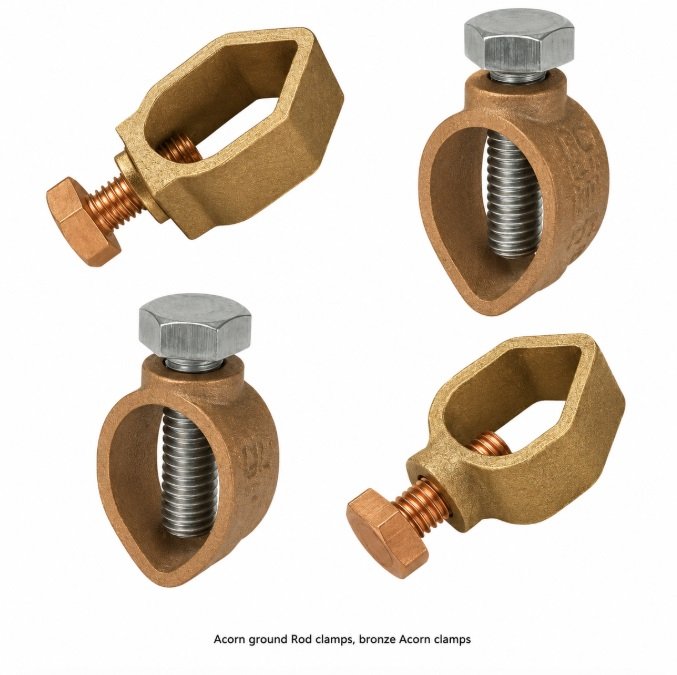

Bronze Ground Rod Clamps – Acorn Clamps
Cable Glands India manufactures Bronze Ground Rod Clamps, including the widely specified Acorn Clamp design, for bonding earth rods to bare copper conductors, stranded cables, and tape in substation, telecom, and lightning protection earthing systems. Cast from high-conductivity bronze and machined to close tolerance, these clamps provide a mechanically secure, low-resistance connection between a driven ground rod and the earthing network conductor. Utilities, EPC contractors, and earthing system installers specify bronze acorn clamps because the domed nut design prevents conductor damage while maintaining full clamping force over decades of outdoor burial.
Price: US$ 12.50 per kilogram | Custom pricing available for bulk and OEM orders
Product Overview
Function of the Acorn Clamp in Earthing Systems
An Acorn Clamp connects a vertically driven ground rod to the horizontal earth conductor that runs to the main earth bar or earth grid. The domed, rounded top of the clamp gives the fitting its acorn shaped appearance and allows a socket or wrench to seat squarely on the nut without slipping, so full torque can be applied without damaging the rod or conductor. This connection is one of the most safety critical joints in an earthing system because it forms the primary path for fault current to reach earth.
Bronze Construction and Conductivity
Our ground rod clamps are cast from C83600 and C95400 bronze alloys, selected for a combination of high electrical conductivity, corrosion resistance, and casting quality that holds tight dimensional tolerance around the rod bore. Bronze construction eliminates the rusting and conductivity loss associated with plated steel clamps, which is critical because the clamp is typically buried or installed in a below grade inspection pit where visual inspection and maintenance are difficult.
Acorn Clamp for Rod to Conductor Bonding
The standard acorn clamp accepts a 1/2 inch, 5/8 inch, or 3/4 inch copper or copper-bonded ground rod through a bored channel and clamps a conductor ranging from 6 AWG solid wire up to 250 kcmil stranded cable in a perpendicular or through channel, depending on the clamp casting pattern selected.
Single Conductor and Dual Conductor Clamps
Single conductor acorn clamps bond one earth conductor to the rod, while dual conductor patterns allow two separate conductors, such as an incoming and an outgoing earth ring conductor, to bond to the same rod without requiring a second rod or a separate splice connector.
Rod Top and Rod Side Clamp Variants
Rod top clamps mount directly onto the top of a driven ground rod and are commonly used where the rod terminates inside an inspection pit or handhole. Rod side clamps bond the conductor partway down the rod length, which is useful where multiple conductors must connect at different points or where the rod extends above final grade for test link access.
Bimetallic and Coated Options
Where a copper-bonded or galvanized steel rod is used instead of solid copper, tin-plated bronze clamp bodies or bimetallic washers are available to reduce galvanic corrosion risk between dissimilar metals at the clamp interface.
Corrosion Performance in Soil
Because acorn clamps are frequently buried directly in soil without a protective enclosure, corrosion resistance is a primary design requirement. Bronze clamps supplied by Cable Glands India maintain mechanical clamping force and electrical continuity across a wide range of soil pH and moisture conditions without needing periodic re-tightening.
Key Features
- Acorn-style domed nut for damage-free high-torque tightening
- Cast bronze body for long-term buried and outdoor service
- Accepts 1/2 inch, 5/8 inch, and 3/4 inch ground rods
- Conductor range from 6 AWG solid to 250 kcmil stranded
- Single and dual conductor clamp patterns available
- UL 467 listed design basis for grounding and bonding equipment
Clamping Force and Mechanical Retention
The acorn clamp geometry is designed to distribute clamping force evenly around the conductor and rod, preventing strand damage on stranded cable while still achieving the holding force needed to withstand fault current electromagnetic forces and accidental pull on the conductor during excavation nearby.
Torque Specification and Tooling
Each clamp size has a specified installation torque supplied on the product datasheet. The domed nut shape is compatible with standard sockets, and no specialised tooling is required for correct installation in the field.
Below-Grade and Pit Installation
Acorn clamps are routinely installed inside precast concrete or polymer ground rod inspection pits, allowing periodic test access while protecting the connection from mechanical damage during future excavation or landscaping work.
Conductivity and Fault Current Path
Low contact resistance at the clamp interface ensures the ground rod contributes fully to the parallel resistance of the overall earthing grid, which is essential for meeting the maximum earth resistance value specified in the project earthing design.
Compatibility with Copper and Copper-Bonded Rods
The clamp bore is sized to match standard solid copper and copper-bonded steel ground rod diameters, ensuring a tight mechanical fit without requiring shims or adapters.
Long-Term Field Performance
Bronze acorn clamps supplied by Cable Glands India are engineered for multi-decade service without re-tightening, reducing the maintenance burden associated with periodic earth resistance testing programs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Bronze (C83600 / C95400) |
| Rod Diameter Range | 1/2 inch, 5/8 inch, 3/4 inch |
| Conductor Range | 6 AWG solid to 250 kcmil stranded |
| Clamp Pattern | Single conductor / dual conductor |
| Contact Resistance | < 50 micro-ohms |
| Fault Current Rating | Up to 3,500 A (0.5 sec) |
| Operating Temperature | -40C to +110C |
| Tensile Strength | 240 – 310 MPa |
| Electrical Conductivity | 12 – 15% IACS |
| Surface Finish | Natural bronze / tin-plated |
Bronze Alloy Grade Reference
| Standard | Grade | Composition | Typical Use |
|---|---|---|---|
| ASTM B584 | C83600 | Cu-Sn-Zn-Pb (Red Bronze) | Standard rod clamps |
| ASTM B148 | C95400 | Cu-Al-Fe (Aluminum Bronze) | Heavy-duty utility clamps |
| BS 1400 | LG2-C | Leaded Gunmetal | European earthing supply |
| IS 318 | Grade-2 Bronze | Indian Standard Bronze | Domestic utility projects |
| DIN 1705 | CuSn5ZnPb | German Red Bronze | EU installations |
International Equivalent Standards
| Region | Standard | Scope |
|---|---|---|
| USA | UL 467 | Grounding and bonding equipment |
| USA | IEEE 837 | Qualifying permanent connections for substation grounding |
| International | IEC 62561-1 | Lightning / earthing component testing |
| India | IS 3043 | Code of practice for earthing |
| Europe | BS EN 62561-1 | Earthing component compliance |
| Australia/NZ | AS 1768 | Lightning protection earthing |
Product Types / Variants
| Type | Description | Typical Application |
|---|---|---|
| Standard Acorn Clamp | Single conductor, domed nut | General purpose rod-to-conductor bonding |
| Dual Conductor Acorn Clamp | Two conductor entries | Ring earth conductor continuity at rod |
| Rod Top Clamp | Mounts on rod top face | Inspection pit and handhole installations |
| Rod Side Clamp | Mounts along rod shaft | Mid-rod conductor connections |
| Test Link Acorn Clamp | Removable link for testing | Periodic earth resistance testing points |
Applications in Industry
Substation Earth Grid Construction
Utilities use acorn clamps at every driven ground rod location around a substation perimeter earth grid to bond rods into the buried conductor network.
Telecommunications Tower Earthing
Cell towers and telecom shelters use acorn clamps to bond ground rings and radial ground rods, protecting sensitive electronic equipment from surge damage.
Lightning Protection Systems
Down-conductor earth termination networks use acorn clamps to connect lightning protection system conductors to driven ground rods per IEC 62561-1 and IS/IEC lightning protection codes.
Commercial and Industrial Building Earthing
Electrical contractors use acorn clamps to complete building earthing systems in compliance with national electrical codes, typically installed inside ground rod inspection wells.
Renewable Energy Installations
Solar farms and wind installations use acorn clamps extensively at each structure ground rod to bond the array earthing network and meet grid code earthing requirements.
Manufacturing Process
| Stage | Method | Quality Check |
|---|---|---|
| Alloy Verification | Spectroscopic analysis | Composition certificate |
| Casting | Sand / gravity die casting | Porosity inspection |
| CNC Machining | Rod bore and conductor channel machining | Bore diameter tolerance check |
| Thread Cutting | Nut and bolt threading | Go/No-go gauge testing |
| Surface Finishing | Tumbling / tin plating (optional) | Coating thickness test |
| Final Inspection | CMM dimensional audit | Conductivity and clamp force test |
| Packing | Anti-corrosion wrap | Documentation check |
Quality Standards and Certifications
ISO 9001:2015 Quality Management, UL 467 grounding equipment compliance, IEEE 837 permanent connection qualification basis, IEC 62561-1 component testing, RoHS material compliance, and CE marking for European supply. Full material test certificates and dimensional reports are issued with every shipment.
Why Choose Cable Glands India
Precision Bore Machining
Our CNC-machined rod bores and conductor channels ensure a consistent, tight fit across every clamp in a production batch, eliminating field fitment issues.
Bronze Metallurgy Expertise
Three decades of bronze and brass casting experience ensures consistent alloy quality and mechanical properties batch after batch.
Direct-Manufacturer Pricing
No distributor markup; volume pricing for utility and OEM frame orders. Price: US$ 12.50 per kilogram.
Global Compliance Documentation
Every order ships with UL 467, IEEE 837, and IEC 62561-1 conformity paperwork required for utility and EPC procurement approval.
Frequently Asked Questions
Q1: What is an Acorn Clamp used for?
It bonds a driven ground rod to the earth conductor, forming the primary connection point where fault current and lightning current enter the soil.
Q2: Why is it called an Acorn Clamp?
The domed, rounded nut resembles an acorn and allows a socket to seat squarely for full torque without slipping or damaging the conductor.
Q3: What rod sizes are supported?
Standard clamps accept 1/2 inch, 5/8 inch, and 3/4 inch copper or copper-bonded ground rods.
Q4: What conductor sizes fit the clamp?
The standard range is 6 AWG solid wire up to 250 kcmil stranded cable, depending on the clamp pattern selected.
Q5: Can two conductors be bonded to one rod?
Yes, dual conductor acorn clamp patterns allow two separate earth conductors to bond to the same rod.
Q6: Why choose bronze over galvanized steel clamps?
Bronze does not rust and maintains conductivity indefinitely in buried, damp soil conditions where steel clamps degrade over time.
Q7: Are these suitable for inspection pit installation?
Yes, rod top and rod side clamp variants are designed for use inside precast ground rod inspection pits and handholes.
Q8: Do you supply test certificates?
Yes, every batch includes material composition, dimensional, and contact-resistance test certificates.
Q9: What is the lead time?
Standard orders ship in 4 to 6 weeks; expedited 2 to 3 week production is available.
Q10: Do you support OEM branding?
Yes, private labeling and custom packaging are available for distributors and OEM customers.
Equivalent Terms in Other Languages
| Language | Equivalent Terms |
|---|---|
| Spanish | Abrazadera de bronce para varilla de puesta a tierra, Abrazadera tipo bellota |
| Russian | Bronzovyi zazhim dlya zazemlyayushchego sterzhnya, Zazhim tipa zhelud |
| French | Collier de terre en bronze pour piquet de terre, Collier type gland |
| Portuguese | Grampo de bronze para haste de aterramento, Grampo tipo bolota |
| Italian | Morsetto in bronzo per picchetto di terra, Morsetto tipo ghianda |
Linked Parts and Related Terms
Bronze Grounding Connectors for Transformers, Bronze Grounding Couplers, Earth Rod Couplers, Square Earth Tape Clamps, DC Earth Tape Clips, Bronze Pipe Clamps, Ground Rod Inspection Pit, Test Link Connector, Earth Conductor Bonding.
Related Products in this Category
- Bronze Grounding Connectors for Transformers – Transformer Tank Connectors
- Bronze Grounding Couplers, Earth Rod Couplers, Threaded Couplers
- Brass / Bronze Square Earth Tape Clamps
- Brass DC Earth Tape Clips
- Bronze Pipe Clamps for Grounding
Get a Quote – Bronze Ground Rod Clamps / Acorn Clamps
Ready to source high-quality Bronze Ground Rod Clamps or Acorn Clamps for your next earthing project? Our team is available to provide technical recommendations, customised quotations, and fast order processing.
Price: US$ 12.50 per kilogram | Custom pricing available for bulk and OEM orders
Email: sales@cableglandsindia.com
Phone / WhatsApp: +91-22-43449300
Website: www.cableglandsindia.com
Share your project specifications, required quantities, and preferred delivery timeline, and we will respond with a detailed quotation within one business day.
