COPPER SCREW MACHINING

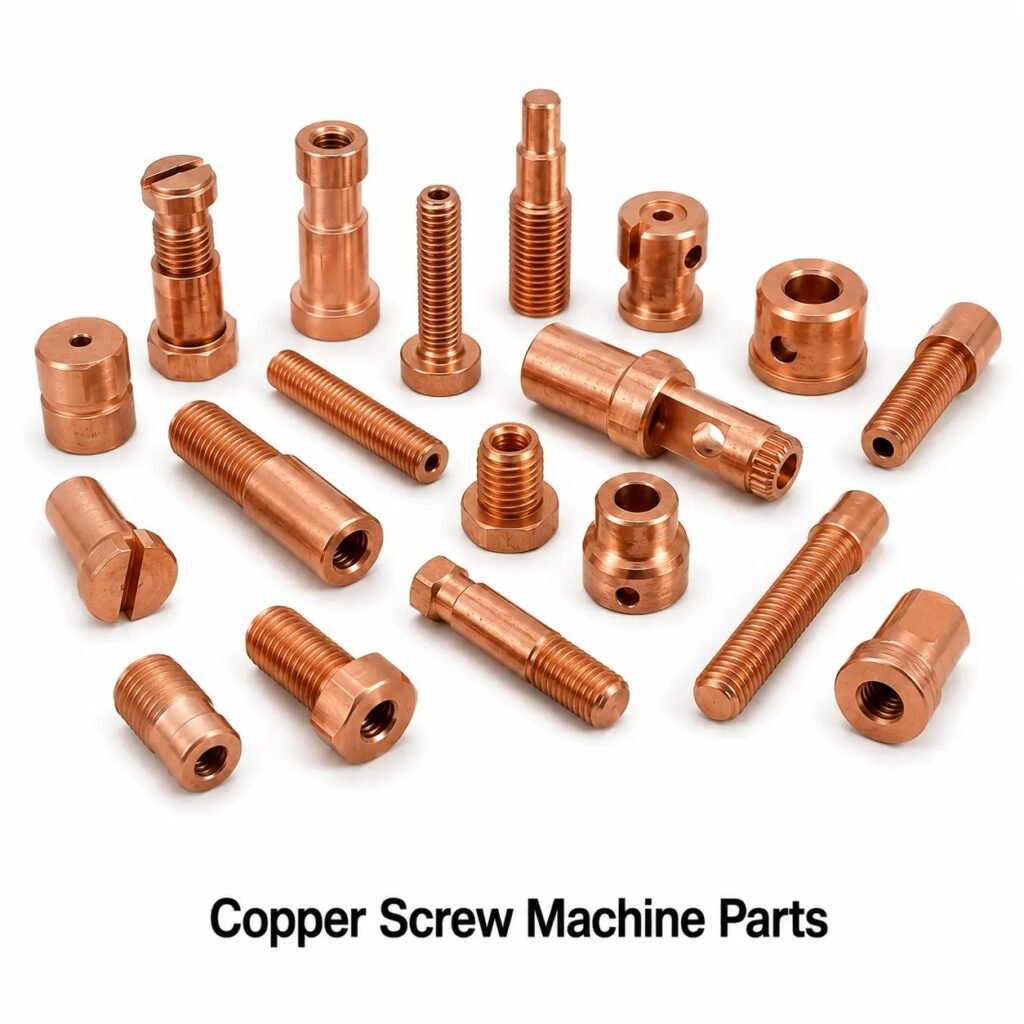

Copper Screw Machine Parts, supplied as copper turned terminals, copper turned studs, copper turned pins, copper turned bushings, and copper turned inserts, are manufactured by Cable Glands India on single-spindle and multi-spindle automatic screw machines from free-cutting copper bar and rod stock. Screw machining removes material from solid copper bar under continuous spindle rotation to produce rotationally symmetric parts, threads, grooves, and cross-drilled features at high production rates with minimal operator intervention, which is why electrical OEMs, EPC contractors, power utilities, and distributors specify screw machined copper parts for threaded terminals, studs, contact pins, and bushings produced in medium to high volumes. Copper screw machine parts hold tight diametral and length tolerances across long production runs, a capability that stamped or cast copper parts of the same geometry cannot match.

Price: US$ 18.30 per kilogram | Custom pricing available for bulk and OEM orders

Product Overview

Function and Advantage of Screw Machining in Copper Component Manufacturing

Automatic screw machining feeds copper bar stock through a collet into a rotating spindle, where cross-slides and turret-mounted tools remove material to produce the finished part profile, threads, and cross features in a single continuous cycle. Because the bar stock is held and rotated with high precision, screw machined copper parts achieve tight diametral tolerance and concentricity that is difficult to reproduce by stamping or casting, making the process the standard choice for threaded copper terminals, studs, and pins produced in volumes from a few thousand to several million pieces.

Single-Spindle and Multi-Spindle Automatic Screw Machines

Single-spindle automatic screw machines perform one operation at a time on each bar, cycling through turning, forming, and cut-off stations sequentially, while multi-spindle machines hold multiple bars simultaneously and index them through several tool stations at once, multiplying output for a given cycle time. Multi-spindle machining is selected for high-volume copper terminal and stud production, while single-spindle and Swiss-type machines are preferred for longer, slender, or more complex turned copper geometries.

Swiss-Type Turning for Slender Copper Components

Swiss-type screw machines support the bar stock with a guide bushing immediately adjacent to the cutting tool, allowing long, slender copper pins and studs to be turned to close tolerance without deflection that would otherwise occur in conventional turning. This method is used for small-diameter copper contact pins and studs where length-to-diameter ratio would cause chatter or taper on a standard automatic lathe.

Threading, Knurling, and Cross Features on Screw Machined Parts

Screw machines cut external and internal threads, roll knurled grip surfaces, and cross-drill or slot the turned copper blank using turret-mounted secondary tooling within the same machine cycle, avoiding the handling and fixturing required for these features on separate equipment. This in-cycle capability keeps thread and cross-feature position concentric and repeatable relative to the turned diameters.

Free-Cutting Copper Grades for Screw Machine Stock

Cable Glands India machines screw machine parts from tellurium copper and other free-cutting copper bar grades that retain high electrical conductivity while providing short, controllable chip formation during high-speed turning, a combination not available from standard electrolytic copper grades, which tend to produce long stringy chips and poor tool life on automatic screw machines.

Secondary Operations on Turned Copper Components

After primary turning, copper screw machine parts undergo secondary broaching, slotting, deburring, and plating operations to bring the part to final drawing specification, with these operations typically batch processed after the primary screw machining run to maintain production throughput.

Screw Machined vs Stamped vs Forged Copper Components

Compared with stamping, screw machining is the only economical process for rotationally symmetric copper parts with external or internal threads, deep bores, or concentric stepped diameters, though stamping remains more economical for flat or shallow-formed geometries. Compared with forging, screw machining removes material rather than displacing it, producing lower material yield per part but avoiding the tooling investment of a forging die, making it preferable for lower to medium volumes or where geometry precludes forging.

Compliance with Copper Rod and Bar Dimensional Standards

Copper screw machine parts are manufactured from bar and rod stock conforming to ASTM B301 and IS 191 material references, which govern the dimensional tolerance, temper, and surface condition of the copper feedstock used in automatic screw machining, allowing finished turned components to be specified into installations governed by these standards.

Key Features

• Single-spindle, multi-spindle, and Swiss-type automatic screw machining
• Turning, threading, knurling, and cross-drilling in a single machine cycle
• Free-cutting copper bar grades for high-speed turning and tool life
• Tight diametral and concentricity tolerances across long production runs
• Secondary broaching, slotting, and plating operations available
• Custom tooling development for OEM turned part geometries
• Bare, tin-plated, nickel-plated, and silver-plated finish options
• Manufactured to ASTM B301 and IS 191 material references

Multi-Spindle Turned Copper Terminals and Studs

Multi-spindle screw machined terminals and studs are produced with multiple bars indexed simultaneously through turning, threading, and cut-off stations, delivering high throughput for OEM programs requiring large quantities of a fixed turned geometry.

Swiss-Type Turned Copper Pins and Contacts

Swiss-type turned copper pins and contact components are held by a guide bushing during machining, supporting long, slender profiles to tight tolerance without the taper or chatter risk associated with unsupported bar turning.

Threaded Copper Studs and Inserts

Threaded copper studs and inserts are turned and threaded in-cycle on the screw machine, producing concentric, repeatable thread engagement for bolted electrical and mechanical connections.

Knurled Copper Grip and Press-Fit Components

Knurled copper components are rolled with a grip pattern during the turning cycle to improve press-fit retention or hand-grip function, produced to controlled knurl depth and pitch for consistent assembly force.

Custom Tooling for OEM Turned Copper Parts

Cable Glands India develops custom form tools and cam or CNC tool paths for OEM turned part geometries, including prototype runs on single-spindle equipment before transferring proven programs to multi-spindle production.

Plated and Finished Screw Machined Copper Parts

Turned copper parts are supplied bare or with tin, nickel, or silver plating applied after machining to meet corrosion resistance, solderability, or contact resistance requirements specified by the customer drawing.

Technical Specifications

Raw Material Grades

International Equivalent Standards

Product Types and Variants

Applications in Industry

Power Distribution and Switchgear Terminals

Screw machined copper terminals and studs are used in switchgear and distribution panels where precise thread engagement and concentricity are required at bolted connections.

Electrical OEM Connector and Pin Assemblies

Electrical OEMs source turned copper pins, bushings, and inserts as ready-to-assemble components for connectors, switches, and control gear.

Transformer and Substation Fittings

Turned copper studs and inserts are specified for transformer and substation hardware where consistent thread and diameter tolerance support reliable field assembly.

Renewable Energy and EV Battery Contacts

Turned copper contact pins and studs are used in solar inverter, battery storage, and EV charging hardware requiring precise, repeatable turned geometry.

Electronics and Precision Connector Manufacturing

Swiss-turned copper pins and standoffs are supplied to electronics OEMs where slender, tight-tolerance turned geometry is required for connector and PCB mounting applications.

Manufacturing Process

Cable Glands India manufactures copper screw machine parts starting from certified free-cutting copper bar or rod, fed through single-spindle, multi-spindle, or Swiss-type automatic screw machines. Each machine cycle turns the profile, cuts threads, rolls knurls, and cross-drills or slots the part as called for on the drawing, before parting off the finished component from the bar. Parts are then deburred, tumbled, and where specified, broached or plated, before dimensional inspection, sample testing, batch coding for traceability, and final packing and dispatch.

Quality Standards and Certifications

Why Choose Cable Glands India

• In-house single-spindle, multi-spindle, and Swiss-type screw machining capability
• Custom tooling development for OEM turned part geometries
• Secondary broaching, slotting, and plating under one roof
• Batch-wise dimensional and plating thickness test certificates available
• Bare, tin, nickel, and silver plated finishes to specification
• Competitive per-kilogram pricing with volume and OEM discounts

Frequently Asked Questions

Q1: What are copper screw machine parts?

Copper screw machine parts are turned components produced on automatic screw machines from copper bar or rod stock, used for terminals, studs, pins, bushings, and inserts.

Q2: What is the difference between single-spindle and multi-spindle screw machining?

Single-spindle machines process one bar at a time through sequential operations, while multi-spindle machines index multiple bars simultaneously through several tool stations, increasing throughput.

Q3: What is Swiss-type turning?

Swiss-type turning supports the bar stock with a guide bushing next to the cutting tool, enabling long, slender parts to be turned to tight tolerance without deflection.

Q4: Can screw machined copper parts be plated?

Yes, turned copper components are supplied bare or with tin, nickel, or silver plating applied after machining to meet corrosion or contact resistance requirements.

Q5: What copper grades are used for screw machining?

Common grades include C14500 tellurium copper and C18700 leaded copper for free-cutting stock, with C11000 and C10200 used where a machinability grade is not permitted.

Q6: Can threads be cut directly on the screw machine?

Yes, external and internal threads are cut in-cycle on the screw machine using turret-mounted threading tools, keeping thread position concentric with turned diameters.

Q7: Do you develop custom tooling for OEM turned parts?

Yes, custom form tools and CNC or cam tool paths are developed for OEM terminal, pin, and insert geometries, including prototype single-spindle runs.

Q8: What standards do your copper screw machine parts comply with?

Copper screw machine parts are manufactured from bar and rod stock conforming to ASTM B301 and IS 191 material references.

Q9: Do you supply test certificates?

Yes, every batch is supplied with dimensional test certification on request.

Q10: What is the standard lead time?

Standard lead time is 3 to 6 weeks depending on tooling requirements, quantity, and plating scope, with expedited options available for existing tooling.
