Brass G Type Gland (ALCO Type Brass Gland
Precision Cable Termination for Indoor Installations

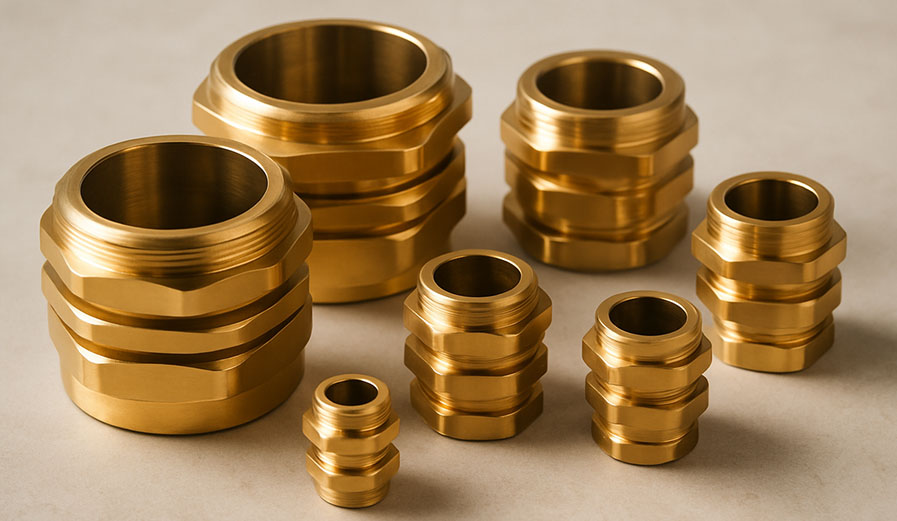

Brass G Type Gland, also known as ALCO Type Brass Gland (G Type), is a robust industrial cable gland designed for unarmoured and armoured cable applications requiring strong mechanical cable retention and environmental sealing. We are one of the leading manufacturers and exporters of Brass G Type Glands from India. We have been supplying Brass Cable Glands to the world market for many decades. Our G Type / ALCO Type Brass Glands are manufactured using high-grade Brass with precision CNC machining to ensure superior grip, corrosion resistance, and long-term performance in industrial environments. These glands are widely used in Electrical Panels, Switchgear Systems, Control Panels, Instrumentation Installations, and Industrial Power Distribution projects across global markets.
Overview – ALCO Type Brass Gland (G Type)
The Brass G Type Gland is a compression type cable gland primarily used for securing and sealing cables entering electrical equipment. It is commonly referred to as ALCO Type due to its design configuration. These glands provide effective strain relief, dust protection, and vibration resistance, making them suitable for indoor and moderate outdoor applications.
Key Features:
Compression type cable sealing
Strong mechanical cable retention
Suitable for unarmoured cables
Corrosion-resistant Brass body
Easy installation and maintenance
Available in Metric, BSP, NPT threads
Compatible with industrial enclosures
G Type Brass Cable Glands are preferred in industrial applications where cost-effective and reliable cable entry solutions are required.
Material Grades & International Standards
Our Brass G Type Glands are manufactured as per international quality standards to meet export requirements.
Material Grades:
| Component | Material | Standard |
|---|---|---|
| Body & Nut | Brass IS 319 Type 1 | India |
| Equivalent | CW614N | EN (Europe) |
| Equivalent | ASTM B16 | USA |
| Equivalent | JIS H3250 | Japan |
| Equivalent | GB H59 | China |
| Seals | Neoprene / Nitrile Rubber | RoHS Compliant |
Applicable Standards:
| Standard | Description |
|---|---|
| BS 6121 | Cable Gland Standard |
| IEC 62444 | Cable Gland Performance |
| IS 12943 | Indian Cable Gland Standard |
| EN 50262 | European Standard |
| IEC 60529 | IP Protection Standard |
Finish Options:
Natural Brass
Nickel Plated Brass
Tin Plated Brass
Custom Plating
Construction & Components of Brass G Type Gland
The ALCO Type Brass Gland typically consists of:
Entry Body (Threaded)
Compression Nut
Sealing Ring
Lock Nut (Optional)
Size Chart / Specification – Brass G Type Gland (ALCO Type Brass Gland)
| CODE | GLAND SIZE | THREAD SIZE (METRIC / NPT) | THREAD LENGTH “E” (MM) | CABLE DIA MIN (MM) | CABLE DIA MAX (MM) | A/F (MM) | FINISH |
|---|---|---|---|---|---|---|---|
| CBL-G-20S | 20S | M20 / 1/2″ | 10 | 8.0 | 12.5 | 24 | Natural / Nickel Plated |
| CBL-G-20L | 20L | M20 / 1/2″ | 10 | 10.5 | 15.5 | 27 | Natural / Nickel Plated |
| CBL-G-25S | 25S | M25 / 3/4″ | 10 | 13.0 | 18.0 | 32 | Natural / Nickel Plated |
| CBL-G-25L | 25L | M25 / 3/4″ | 10 | 17.0 | 22.0 | 36 | Natural / Nickel Plated |
| CBL-G-32 | 32 | M32 / 1″ | 12 | 21.0 | 27.0 | 46 | Natural / Nickel Plated |
| CBL-G-40 | 40 | M40 / 1 1/4″ | 15 | 26.0 | 33.0 | 55 | Natural / Nickel Plated |
| CBL-G-50 | 50 | M50 / 1 1/2″ | 15 | 32.0 | 39.0 | 65 | Natural / Nickel Plated |
| CBL-G-63 | 63 | M63 / 2″ | 15 | 38.0 | 46.0 | 75 | Natural / Nickel Plated |
| CBL-G-75 | 75 | M75 / 2 1/2″ | 20 | 44.0 | 52.0 | 90 | Natural / Nickel Plated |
Physical & Mechanical Properties
| Property | Typical Value |
|---|---|
| Material Strength | High |
| Corrosion Resistance | Excellent |
| Operating Temperature | -20°C to +100°C |
| Ingress Protection | IP65 / IP66 |
| Vibration Resistance | Suitable for Industrial Applications |
| Plating Thickness | 8–12 Microns (Nickel) |
Manufacturing Process & Machinery Used
Our Brass G Type Cable Glands are manufactured in India using advanced production facilities.
Manufacturing Process:
Brass Rod Cutting
CNC Turning & Threading
Knurling & Slotting
Seal Moulding
Surface Finishing
Electroplating
Quality Inspection
Machinery Used:
CNC Automatic Lathes
Thread Rolling Machines
Drilling & Tapping Machines
Electroplating Units
IP Testing Equipment
Quality Checks Include:
Thread Gauge Testing
Dimensional Accuracy Check
IP Protection Testing
Surface Finish Inspection
Salt Spray Test
Turnaround Time: 4–6 Weeks
Applications & Industries
Brass G Type (ALCO Type) Cable Glands are widely used in:
Electrical Control Panels
Switchgear & Distribution Boards
Industrial Automation Systems
Machinery Installations
Telecom Equipment
Solar Panel Installations
Building Electrical Systems
OEM Electrical Equipment Manufacturing
Tolerances & Quality Assurance
| Parameter | Specification |
|---|---|
| Dimensional Tolerance | ±0.05 mm |
| Thread Tolerance | As per ISO / BSP Standards |
| Surface Finish | Smooth & Burr-Free |
| Seal Hardness | Shore A 60–70 |
| Material Certification | Available |
All products are RoHS compliant and available with inspection reports upon request.
Packaging & Global Export
Individual Polybag Packing
Bulk Industrial Packing
Customized Branding & Labeling
Export-Grade Corrugated Boxes
Palletized Shipping for Bulk Orders
We export globally to USA, UK, Europe, Middle East, Africa, and Southeast Asia.
Why Choose Our Brass G Type Glands?
With over three decades of global manufacturing experience, we offer:
Precision CNC manufacturing
Custom thread configurations
Competitive export pricing
Flexible production volumes
Fast communication & technical assistance
Strict quality control
Reliable 4–6 week delivery
Strong international supply network
Our ability to customize and maintain consistent quality makes us a reliable supplier of ALCO Type Brass Glands worldwide.
Frequently Asked Questions (FAQ)
What is a Brass G Type Gland used for?
It is used to secure and seal cable entries in electrical equipment.Is G Type suitable for armoured cables?
Primarily used for unarmoured cables; other types are preferred for heavy armour.What thread types are available?
Metric, BSP, NPT, PG threads.What ingress protection rating is provided?
Typically IP65 / IP66.Can you provide Nickel plated glands?
Yes.What is your standard production time?
4–6 weeks.Are custom sizes available?
Yes, based on drawing.Do you export worldwide?
Yes.Are these glands corrosion resistant?
Yes, especially Nickel plated versions.Do you provide inspection certificates?
Yes, upon request.
Glossary of Technical Terms
Cable Gland – Device used to attach and secure cable to equipment.
Compression Gland – A gland that seals cable using compression nut tightening.
Ingress Protection (IP) – Degree of protection against dust and water.
Thread Tolerance – Permissible deviation in thread dimension.
Nickel Plating – Protective coating to enhance corrosion resistance.
