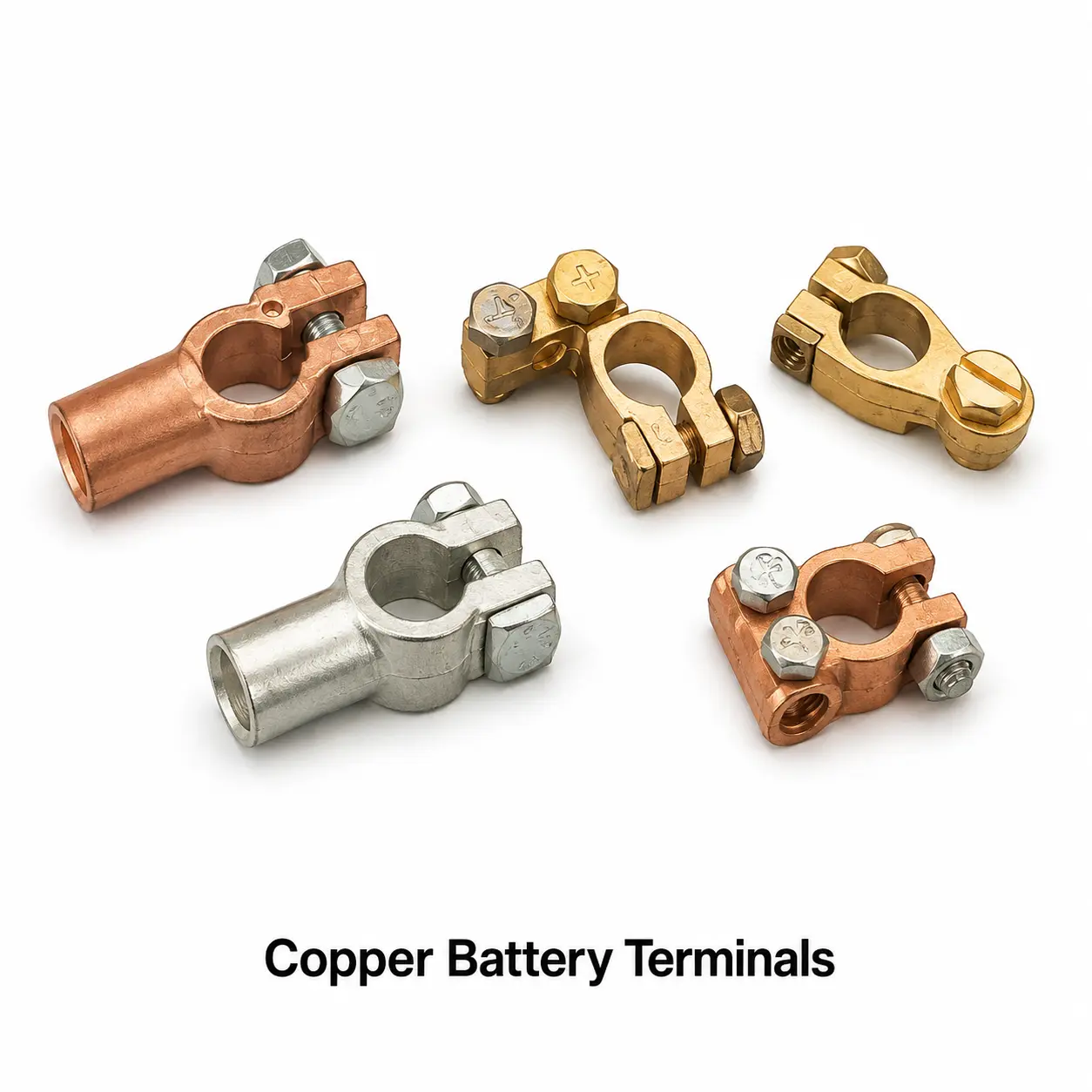

Copper Battery Terminals – Copper Battery Terminal Clamps and Connectors
Cable Glands India manufactures copper battery terminals, supplied as battery terminal clamps, top post connectors, and threaded stud terminals, used to connect battery cables to lead-acid and lithium battery posts in automotive, marine, telecom, UPS, and battery energy storage applications. Each terminal clamps or bolts onto the battery post while providing a crimp, bolt, or set-screw connection point for the battery cable, forming the primary current path between the battery and the vehicle, vessel, or DC power system it supplies. Electrical OEMs, EPC contractors, power utilities, and distributors specify copper battery terminals wherever a low-resistance, corrosion-resistant connection is required at a high-current DC power source, including engine starting, traction, telecom backup, and solar or grid-scale battery storage systems.
Price: US$ 15.90 per kilogram | Custom pricing available for bulk and OEM orders
Product Overview
Function of a Battery Terminal in a DC Power Circuit
A battery terminal forms the bolted or clamped connection between a battery post and the external cable that carries starting, traction, or backup power current to the rest of the electrical system. The terminal must maintain a low-resistance contact under the mechanical stress of vibration and thermal cycling, and resist the corrosive off-gassing that occurs around lead-acid battery posts, while still allowing the terminal to be removed and reinstalled for battery replacement or maintenance.
High-Conductivity Copper Construction
Cable Glands India manufactures battery terminal bodies from electrolytic tough pitch copper and leaded or high-copper alloys selected for conductivity and castability, matched to the high momentary current demand of engine cranking, traction, and backup power discharge. Copper construction keeps terminal resistance low across the working life of the connection, reducing voltage drop at the battery post under high discharge current.
Clamp-On Post Terminal Design (SAE / Top Post)
SAE type top post terminals clamp around the tapered battery post using a through-bolt or wing nut, providing a quick-release connection standard on automotive and light-duty starting batteries. The clamp design allows the terminal to be tightened onto the post without soldering or crimping in the field, while still providing a large post contact area for low resistance.
Stud and Threaded Terminal Types
Stud type and threaded battery terminals bolt directly onto a threaded battery post or busbar connection point, common on marine, telecom, UPS, and stationary battery banks where a bolted connection provides higher vibration resistance and easier multi-cable stacking than a clamp-on post terminal.
Tin and Lead Plating for Corrosion Resistance
Battery terminals are commonly tin or lead plated over the copper body to resist the sulfuric acid vapor and corrosion products that form around lead-acid battery posts, maintaining a stable low-resistance contact surface over the service life of the battery and reducing the buildup of resistive corrosion products at the post-terminal interface.
Insulating Boot and Cover Compatibility
Terminals are manufactured to standard post and clamp dimensions compatible with rubber or vinyl insulating boots and covers, which protect the connection from accidental short circuit and further reduce corrosion by limiting exposure to moisture and battery gas at the terminal.
Cable Entry and Crimp / Bolt Termination Options
The cable entry point on a battery terminal is manufactured as a crimp barrel, a set-screw bore, or a bolted lug interface, selected according to the cable size, whether the termination will be made with a hydraulic crimping tool, and whether the connection needs to be field-serviceable without special tooling.
Compliance with Battery Terminal Standards
Copper battery terminals are manufactured to dimensional references drawn from SAE J560 (top post battery terminals), BS 6103, and IEC 60095, which define post taper, clamp dimensions, and terminal performance requirements for automotive and stationary lead-acid battery applications.
Key Features
- Electrolytic copper and high-copper alloy terminal body construction
- SAE top post, stud type, and threaded terminal configurations
- Tin or lead plated finish for corrosion resistance at the battery post
- Crimp, set-screw, and bolted cable entry options
- Compatible with standard insulating boots and terminal covers
- Dual and triple cable entry variants for multi-battery bank wiring
- Manufactured to SAE J560, BS 6103, and IEC 60095 dimensional references
- Quick-disconnect wing nut and bolted stud options
SAE Top Post Battery Terminals
SAE top post terminals clamp around the standard tapered automotive battery post and are tightened with a through-bolt or wing nut, providing the quick-release connection used on passenger vehicle, light truck, and small engine starting batteries, with positive and negative post sizes manufactured to SAE J560 taper dimensions.
Marine and Heavy-Duty Battery Terminals
Heavy-duty clamp terminals with reinforced bodies and larger cable entry bores are manufactured for marine, commercial vehicle, and off-highway starting and house battery banks, where vibration, moisture exposure, and higher cranking current demand a more robust terminal than standard automotive designs.
Stud Type / Threaded Battery Terminals
Threaded stud terminals bolt onto stationary battery posts or interconnect busbars in telecom, UPS, and grid-scale battery storage installations, allowing multiple cables or straps to be stacked and torqued to a specified value, which is important where connection resistance must be verified during commissioning.
Dual Cable Entry Terminals
Dual and triple cable entry terminals accept more than one cable at the same post connection, used where a battery must supply both a starting circuit and an accessory or charging circuit from the same post without stacking multiple single-entry terminals.
Insulated and Booted Terminals
Terminals supplied with a pre-fitted insulating boot or compatible with a separate boot cover reduce the risk of accidental short circuit from tools or adjacent metal, which is a standard requirement in automotive, marine, and telecom battery room installations.
Quick-Disconnect and Wing Nut Terminals
Wing nut and quick-disconnect terminal designs allow tool-free or low-tool removal of the battery cable, specified where a battery may need to be disconnected frequently for maintenance, storage, or safety isolation without needing a socket or spanner.
Technical Specifications
| Parameter | Typical Range / Value |
|---|---|
| Terminal type | SAE top post, stud type, threaded, dual entry |
| Cable range | 4 AWG to 4/0 AWG (or 16 sq mm to 120 sq mm) |
| Post taper (top post) | SAE J560 standard taper, positive and negative sizes |
| Termination method | Clamp bolt, wing nut, crimp, set-screw |
| Base material | Electrolytic copper / high-copper alloy |
| Surface finish | Bare copper, tin plated, or lead plated |
| Operating temperature | -40 degrees C to +105 degrees C |
| Standard packaging | Bulk carton, pair-packed (positive/negative) on request |
Raw Material Grades
| Grade | Alloy Type | Key Properties |
|---|---|---|
| C11000 (ETP Copper) | Electrolytic tough pitch copper | 100% IACS conductivity, good formability |
| C83600 | Leaded red bronze | Good casting quality for clamp-body terminals |
| C12200 (DHP Copper) | Phosphorus deoxidized copper | Good weldability for stud terminal fabrication |
International Equivalent Standards
| Country / Standard Body | Equivalent Reference |
|---|---|
| USA – SAE | SAE J560 (top post battery terminal dimensions) |
| UK – BS | BS 6103 (copper and copper alloy terminals reference) |
| IEC | IEC 60095 (lead-acid starter battery reference) |
| India – IS | IS 1651 (stationary lead acid battery reference) |
| Europe – DIN | DIN 72311 (automotive battery terminal reference) |
Product Types and Variants
| Type | Description | Typical Use |
|---|---|---|
| SAE top post terminal | Clamp-on tapered post connection | Automotive and light-duty starting batteries |
| Marine / heavy-duty terminal | Reinforced clamp body, larger bore | Marine, commercial vehicle, off-highway batteries |
| Stud type terminal | Threaded stud or bolted pad | Telecom, UPS, stationary battery banks |
| Dual cable entry terminal | Two or more cable entry points | Combined starting and accessory circuits |
| Insulated / booted terminal | Boot fitted or boot-compatible | Automotive, marine, telecom battery rooms |
| Wing nut / quick-disconnect terminal | Tool-free clamp release | Frequently serviced or isolated batteries |
Applications in Industry
Automotive and Commercial Vehicle Starting Batteries
SAE top post terminals connect starter, alternator, and accessory cables to passenger vehicle, truck, and bus starting batteries, where a reliable low-resistance connection is required for reliable cold-cranking performance.
Marine and Off-Highway Battery Systems
Heavy-duty and marine-rated battery terminals connect starting and house battery banks on boats, construction equipment, and agricultural machinery, where vibration and moisture resistance are important.
Telecom and UPS Backup Power
Stud type battery terminals connect stationary lead-acid and lithium battery banks in telecom shelters and UPS installations, where multiple cells or strings must be interconnected and torqued to a specified value during commissioning.
Renewable Energy and Battery Storage
Copper battery terminals connect battery modules in solar energy storage and grid-support battery systems, where high discharge current and long-term corrosion resistance at the terminal are design considerations.
Industrial and Material Handling Equipment
Battery terminals connect traction battery packs in forklifts, electric pallet trucks, and other material handling equipment, where frequent charge-discharge cycling and vibration place ongoing demands on the terminal connection.
Manufacturing Process
Cable Glands India manufactures copper battery terminals by casting or forging the clamp or stud body from electrolytic copper or leaded bronze, followed by CNC machining of the post bore, clamp slot, and cable entry feature to the specified dimension. Clamp terminals are machined to the SAE post taper and drilled and tapped for the through-bolt or wing nut, while stud terminals are machined and threaded to the specified stud size. Parts are then cleaned, tin or lead plated by electro-deposition where specified, and dimensionally inspected before packing. Each batch is sample tested for post taper fit, clamp torque retention, and where required, contact resistance, before dispatch.
Quality Standards and Certifications
| Standard / Certification | Scope |
|---|---|
| ISO 9001 | Quality management system certification |
| SAE J560 | Reference performance basis for top post terminals |
| BS 6103 | Copper and copper alloy terminal reference |
| IEC 60095 | Lead-acid starter battery reference standard |
| RoHS | Restriction of hazardous substances compliance on request |
Why Choose Cable Glands India
- In-house casting, forging, and CNC machining of terminal bodies for full process control
- Full range of SAE, stud, and heavy-duty terminal types from a single supplier
- Tin and lead plated finish options manufactured to order
- Batch-wise dimensional and contact-resistance test certificates available
- Custom clamp size, stud thread, and cable entry configuration on request
- Competitive per-kilogram pricing with volume and OEM discounts
Frequently Asked Questions
Q1: What is a copper battery terminal used for?
A copper battery terminal connects a battery cable to the battery post, forming the primary current path between the battery and the vehicle, vessel, or DC power system it supplies.
Q2: What is the difference between a top post and a stud type terminal?
A top post terminal clamps around a tapered automotive-style battery post with a through-bolt or wing nut, while a stud type terminal bolts onto a threaded post or busbar, which is common on stationary telecom and UPS battery banks.
Q3: Should I choose tin-plated or lead-plated terminals?
Tin plating is commonly specified for general automotive and marine use, while lead plating is traditional on lead-acid starting battery terminals for compatibility with the battery post material and corrosion environment; either can be specified based on OEM preference.
Q4: What cable sizes are supported?
Standard copper battery terminals accept cable sizes from approximately 4 AWG up to 4/0 AWG, with custom bore sizes available for larger traction and storage battery cables.
Q5: Are dual cable entry terminals available?
Yes, dual and triple cable entry terminals are available where a battery post must supply more than one circuit without stacking multiple single-entry terminals.
Q6: Do you supply terminals with insulating boots?
Yes, terminals can be supplied with a pre-fitted insulating boot or manufactured to dimensions compatible with standard separate boot covers.
Q7: What standards do your battery terminals comply with?
Copper battery terminals are manufactured to dimensional references drawn from SAE J560, BS 6103, and IEC 60095.
Q8: Are these terminals suitable for marine use?
Yes, heavy-duty and marine-rated clamp terminals are manufactured with reinforced bodies and corrosion-resistant plating suited to marine starting and house battery banks.
Q9: Do you supply test certificates?
Yes, every batch is supplied with dimensional and, where required, contact-resistance test certification on request.
Q10: What is the standard lead time?
Standard lead time is 4 to 6 weeks depending on quantity and configuration, with expedited options available for OEM and utility orders.
International Equivalent Terms
| Language | Equivalent Terms |
|---|---|
| Spanish | Terminales de bateria de cobre, Bornes de bateria |
| Russian | Mednye akkumulyatornye klemmy, Klemmy dlya batarei |
| French | Cosses de batterie en cuivre, Bornes de batterie |
| Portuguese | Terminais de bateria de cobre, Bornes de bateria |
| Italian | Morsetti per batteria in rame, Terminali per batteria |
Linked Parts and Related Terms
Copper Battery Terminal, Battery Terminal Clamp, SAE Top Post Terminal, Stud Type Battery Terminal, Marine Battery Terminal, Battery Cable Connector, Copper Battery Lug.
