Brass Threaded Fittings
Brass Threaded Fittings – Precision Engineered Brass Pipe Threaded Fittings Manufacturer & Exporter from India
Brass Threaded Fittings are widely used in plumbing, water supply, pneumatic systems, and industrial piping networks because of their corrosion resistance, durability, and excellent machinability. We are one of the leading manufacturers and exporters of Brass Threaded Fittings from India. We have been supplying Brass Pipe Threaded Fittings to the world market for many decades. With more than three decades of global manufacturing experience, we produce high-precision Brass threaded fittings that comply with international standards such as ASTM, BS, DIN, EN, IS, and JIS. Our fittings are widely used in water distribution, HVAC, gas pipelines, hydraulic installations, and marine applications. Manufactured from high-grade Brass alloys, these fittings offer reliable sealing, strong threads, and long service life even in corrosive environments. Our integrated manufacturing facility includes advanced CNC machining, threading machines, and testing equipment to ensure dimensional accuracy and pressure-tight performance. Standard production turnaround time is 4–6 weeks, depending on size and quantity.
Overview of Brass Threaded Fittings
Brass Threaded Fittings are connectors used to join pipes or tubes with threaded ends. These fittings allow easy installation, removal, and maintenance without the need for welding. Brass threaded fittings are typically produced with internal or external threads compatible with BSP, BSPT, NPT, or metric thread standards. Because Brass contains Copper and Zinc, the alloy offers excellent corrosion resistance in water systems and superior machinability compared with Stainless Steel or Bronze alternatives. Brass threaded fittings provide reliable sealing performance, resistance to scaling, and good mechanical strength. They are commonly used in plumbing systems, compressed air pipelines, irrigation systems, hydraulic lines, and industrial machinery. Due to their non-sparking nature and thermal conductivity, Brass fittings are also suitable for gas distribution and fuel handling applications.

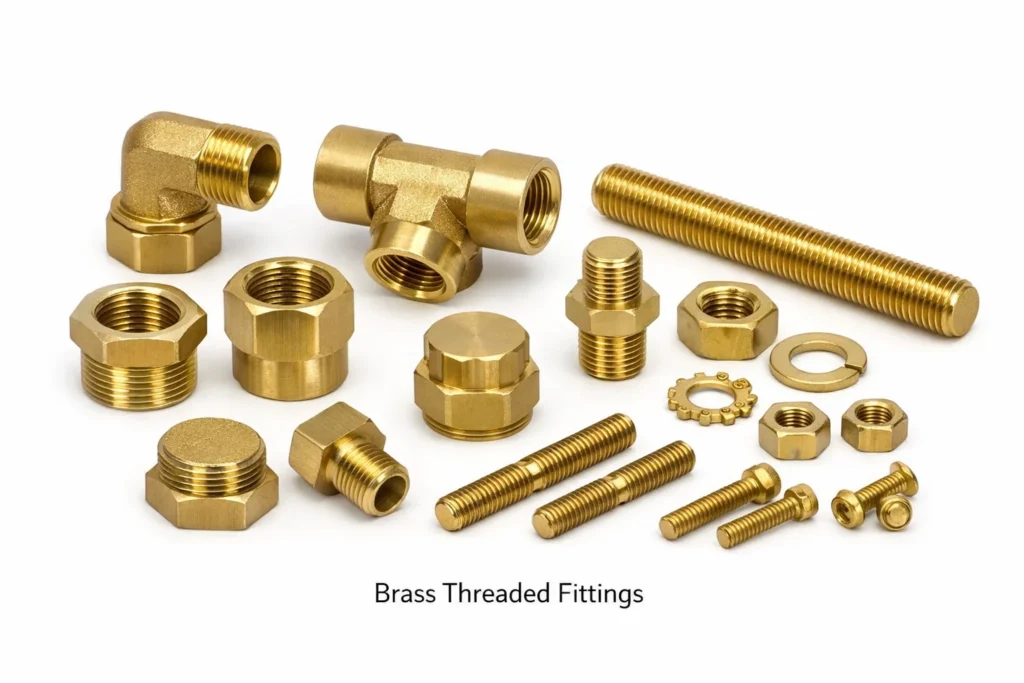

Types of Brass Threaded Fittings
Brass threaded fittings are available in a wide range of configurations designed for different piping layouts and flow requirements.
| Type | Description |
|---|---|
| Brass Elbow (90° / 45°) | Changes pipe direction |
| Brass Tee | Branch connection |
| Brass Coupling | Joins two pipes |
| Brass Reducer | Connects different pipe sizes |
| Brass Bushing | Reduces internal thread size |
| Brass Union | Allows easy disassembly |
| Brass Nipple | Short pipe connector |
| Brass Plug / Cap | Closes pipe ends |
These fittings are manufactured with male threads, female threads, or a combination of both depending on application requirements.
Brass Threaded Fittings – Material Grades & International Standards
Our Brass threaded fittings are manufactured using high-quality Brass alloys that comply with global material specifications.
| Standard | Material Grade | Description |
|---|---|---|
| ASTM | C36000 | Free Cutting Brass |
| ASTM | C37700 | Forging Brass |
| ASTM | C38500 | Architectural Brass |
| BS | CZ121 | Free Machining Brass |
| BS | CZ122 | DZR Brass |
| DIN | CuZn39Pb3 | German Brass Standard |
| EN | CW614N | European Machining Brass |
| IS | IS 319 Grade I | Indian Brass |
| JIS | C3604 | Japanese Brass |
| GB (China) | HPb59-1 | Chinese Brass Alloy |
These materials ensure compatibility with global piping systems and OEM requirements.
Manufacturing Process of Brass Threaded Fittings
Brass threaded fittings are typically produced through hot forging, bar machining, or casting followed by precision machining operations. Brass rods or billets are cut to size and processed using CNC turning centers and multi-spindle automatic machines. Threading operations are performed using tapping machines and thread rolling equipment to achieve accurate BSP, BSPT, and NPT threads. After machining, fittings undergo deburring, polishing, and cleaning. Surface finishes such as natural Brass, Nickel plating, Chrome plating, or Tin coating are available depending on application requirements. Each batch undergoes dimensional inspection, thread gauge testing, and hydrostatic pressure testing to ensure leak-free performance. Our manufacturing process ensures consistent quality and tight tolerances up to ±0.05 mm depending on part geometry.
Typical Size & Dimensional Chart (Threaded Brass Fittings)
| Nominal Pipe Size | BSP Thread Diameter (mm) | NPT Equivalent | Typical Length (mm) |
|---|---|---|---|
| ¼” | 13.16 | 0.25” | 20–25 |
| ½” | 20.95 | 0.5” | 30–35 |
| 1” | 33.25 | 1” | 40–50 |
| 2” | 59.61 | 2” | 60–70 |
| 3” | 87.88 | 3” | 80–95 |
(Custom dimensions available as per engineering drawings.)
Physical & Mechanical Properties of Brass (Typical)
| Property | Typical Value |
|---|---|
| Density | 8.4 – 8.7 g/cm³ |
| Tensile Strength | 300 – 500 MPa |
| Yield Strength | 100 – 250 MPa |
| Hardness | 80 – 150 HB |
| Melting Range | 900 – 940°C |
| Thermal Conductivity | High |
These properties make Brass suitable for machining complex threaded components with excellent durability.
Machinery Used in Production
The manufacturing of Brass threaded fittings involves advanced machinery such as CNC turning centers, automatic screw machines, forging presses, tapping machines, thread rolling machines, polishing machines, and CMM inspection systems. Induction furnaces may be used for Brass melting when cast components are required. These machines ensure repeatable accuracy and high production efficiency.
Industries Using Brass Threaded Fittings
Brass threaded fittings are widely used in plumbing systems, water distribution pipelines, HVAC installations, gas pipelines, fire protection systems, compressed air networks, irrigation equipment, hydraulic machinery, and industrial fluid control systems. Their corrosion resistance makes them ideal for potable water and marine environments.
Performance Metrics
Brass threaded fittings provide reliable sealing under moderate pressure conditions and maintain excellent corrosion resistance in water environments. The fittings typically withstand working pressures between 150 PSI and 600 PSI depending on design and size. Thread precision ensures secure installation and minimal leakage risk.
Why Choose Our Brass Threaded Fittings
With more than 30 years of manufacturing and export experience, we provide high-quality Brass threaded fittings tailored to global OEM requirements. Our strengths include customized design support, flexible production scheduling, competitive pricing, and reliable communication with international clients. We supply both standard catalog fittings and fully customized components as per drawings. Our packaging solutions allow private labeling, barcode tagging, and customized cartons with customer logos. These advantages make us a trusted partner for global distributors and industrial buyers.
Frequently Asked Questions (Q&A)
Q1: What thread standards are available?
BSP, BSPT, NPT, and metric threads.
Q2: Are Brass threaded fittings suitable for potable water?
Yes, many Brass alloys are widely used in water supply systems.
Q3: Can fittings be Nickel plated?
Yes, Nickel, Chrome, and Tin plating are available.
Q4: What is the typical delivery time?
Production turnaround is usually 4–6 weeks.
Q5: Are custom fittings possible?
Yes, we manufacture fittings as per customer drawings.
Q6: Do you provide inspection certificates?
Yes, material test certificates and inspection reports are provided.
Q7: What is the maximum size available?
Standard sizes up to 4”, larger sizes on request.
Q8: Are fittings pressure tested?
Yes, hydrostatic pressure testing can be performed if required.
Q9: Do you export globally?
Yes, we export to USA, Europe, Middle East, and Asia.
Q10: What surface finishes are available?
Natural Brass, Nickel plated, Chrome plated, or polished finish.
Glossary of Terms
BSP Thread: British Standard Pipe thread used widely in Europe and Asia.
NPT Thread: National Pipe Taper thread standard used in the United States.
Hot Forging: Metal forming process using heat and pressure.
CNC Machining: Computer controlled precision machining process.
Hydrostatic Test: Pressure testing using water to check leaks.
