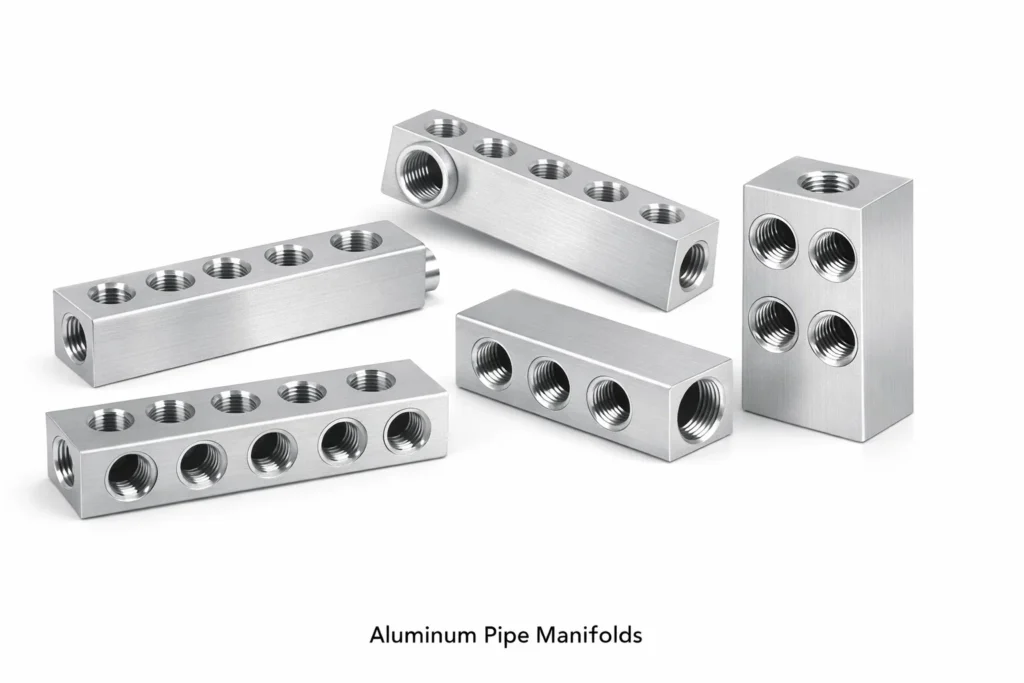

Aluminum Pipe Manifolds Manufacturer & Exporter India | Custom CNC Aluminium Manifolds

We are one of the leading manufacturers, suppliers and exporters of Aluminum Pipe Manifolds from India. We have been supplying Aluminum pipe manifolds and multi-port distribution blocks to the world market for 3 decades. Aluminum pipe manifolds are precision-machined multi-port flow distribution components used in pneumatic, hydraulic, compressed air, and fluid power systems to distribute a single inlet supply to multiple outlets — or to collect multiple inlet flows into a single outlet. Their lightweight nature (Aluminium is approximately one-third the weight of Steel), excellent machinability, good corrosion resistance, and cost-effectiveness make Aluminium manifolds the preferred choice for compact, multi-circuit systems where weight reduction is critical. Manufactured from aerospace-grade and commercial-grade Aluminium alloys — including AA6061-T6, AA6082-T6, AA5083, and AA7075 — our manifolds are precision CNC-machined from billet or extruded Aluminium, offering tight dimensional tolerances, leak-free port intersections, and excellent surface finishes. We are ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certified, and our Aluminum pipe manifolds are exported to customers in the USA, UK, Germany, Australia, Canada, and across Europe and Southeast Asia, serving pneumatics OEMs, compressed air equipment manufacturers, HVAC system builders, hydraulic circuit designers, and industrial automation companies.

Our Aluminum pipe manifolds are available in standard configurations — 2-way to 12-way distribution, gang-mounted valve manifolds, sub-base manifolds, and custom bespoke multi-port blocks — in sizes from 1/8″ BSP to 1½” BSP and metric equivalents. We manufacture to customer drawings and 3D models, and our engineering team provides DFM (Design for Manufacturability) review at no charge. With a typical turnaround time of 4–6 weeks and flexible production scheduling, we provide consistent quality and reliable delivery for both standard catalogue items and custom engineered manifolds.

Sub-categories: Pneumatic manifolds, compressed air manifolds, hydraulic manifolds, Aluminium multi-port distribution blocks, gang valve manifolds, sub-base manifolds, custom Aluminium manifolds, Aluminium flow dividers, Aluminium pipe junction blocks

Material Grades — Aluminum Pipe Manifolds

Material Properties — AA6061-T6 (Most Common Manifold Alloy)

Manufacturing Processes

Aluminum pipe manifolds are almost exclusively produced by precision CNC machining from solid Aluminium billet or extruded bar/plate stock. Unlike castings which can contain porosity and inclusions that cause leak paths, billet-machined manifolds offer superior pressure integrity, consistent density, and tighter dimensional tolerances. The manufacturing sequence begins with procurement of certified Aluminium billet (with OES spectrometer verification of alloy grade and temper), followed by sawing and face milling to produce the working blank, precision CNC machining of the manifold body profile, port drilling (typically with carbide tooling), cross-hole interconnection drilling, thread tapping for BSP, NPT, or metric port threads, deburring and back-deburring of intersecting ports, pressure testing (either hydrostatic or pneumatic with leak detection fluid), and surface treatment — anodising, chromate conversion coating, or natural Aluminium.

For large-volume manifold designs or simple linear distribution blocks, extrusion-based production followed by CNC drilling and threading is used to reduce material waste and machining time. Complex multi-circuit manifolds for hydraulic or pneumatic valve mounting are typically produced from high-specification 3D CAD-driven CNC machining centres with 4-axis or 5-axis capability, enabling complex port configurations and tight geometrical tolerances in a single setup.

Machinery Used

Typical Parts Produced

Our Aluminum pipe manifold range includes: BSP and NPT threaded Aluminium distribution manifolds (2-port to 12-port), pneumatic compressed air manifolds with 1/4″ BSP ports, hydraulic manifold blocks with SAE O-ring boss (ORB) ports, gang-mounted solenoid valve manifolds, sub-base mounted valve blocks, Aluminium fuel distribution rails for engines and test rigs, Aluminium cooling water distribution manifolds, Aluminium vacuum manifolds, Aluminium compressed gas distribution headers, custom multi-circuit manifolds designed from customer 3D models and P&ID drawings, and Aluminium manifold bodies for refrigerant distribution in multi-split HVAC systems.

Dimensional Chart — Standard Aluminum Distribution Manifolds (BSP Thread)

Custom port configurations, non-standard outlet sizes, reduced port spacings, and mixed thread forms (BSP outlets with NPT inlet, or metric) are available per customer drawings. Pressure ratings are for AA6061-T6 at ambient temperature.

Surface Finish and Treatment Options

International Standards for Aluminum Pipe Manifolds

Our Aluminum pipe manifolds are designed and manufactured in accordance with the following standards and specifications: ISO 228-1 (BSPP pipe thread dimensions), ISO 7-1 (BSPT taper pipe thread dimensions), ANSI/ASME B1.20.1 (NPT thread form and tolerances), SAE J514 (O-ring boss ports — hydraulic manifolds), SAE J1926 (Straight thread port connections — O-ring seal), ISO 6149 (Hydraulic fluid power metric O-ring boss ports), ASTM B209 (Aluminium and Aluminium alloy sheet and plate), ASTM B221 (Aluminium and Aluminium alloy extruded bars and shapes), BS EN 573-3 (Chemical composition of wrought Aluminium alloys), MIL-A-8625 (Anodic coatings for Aluminium and Aluminium alloys), and MIL-DTL-5541 (Chemical conversion coatings on Aluminium).

Industries Using Aluminum Pipe Manifolds

The pneumatic and industrial automation industry is the largest user of Aluminium pipe manifolds, using them to distribute compressed air to multiple pneumatic cylinders, valves, and actuators in assembly lines, packaging machines, and robotic systems. The HVAC and refrigeration industry uses Aluminium manifolds as refrigerant distribution headers in multi-split air conditioning systems and chillers. The hydraulic machinery industry uses Aluminium manifold blocks for mobile equipment and machine tool hydraulic circuits where weight savings are critical. The oil-free compressed air and laboratory gas industry relies on Aluminium manifolds for clean, dry, particle-free gas distribution. The automotive and motorsport industry uses Aluminium fuel rails and intake manifolds for race car and high-performance engine applications. Defence and aerospace, medical equipment, food and beverage processing, semiconductor manufacturing, and renewable energy systems (solar thermal, hydrogen fuel cell) also use Aluminium pipe manifolds extensively.

Tolerances

Turnaround Time

Standard Aluminium distribution manifolds in common configurations (4-port to 8-port, ¼”–¾” BSP/NPT) are typically shipped within 4–6 weeks from order confirmation. Custom engineered manifolds requiring 3D CAD programming, special port configurations, or non-standard alloys take 6–8 weeks. For first-article qualification samples, our target is 3–4 weeks. Complex hydraulic manifold blocks with multiple circuit layers and precision port locations are typically 8–10 weeks. We provide milestone production updates and pre-shipment dimensional inspection reports as standard.

Performance Metrics

Why Choose Us for Aluminum Pipe Manifolds?

Cable Glands India has been manufacturing Aluminium manifolds for pneumatic, hydraulic, compressed air, and fluid power applications for over 30 years. Our combination of advanced CNC machining capability, strict quality control, experienced engineering team, and global logistics infrastructure makes us a preferred partner for customers in the USA, Europe, and Australia seeking reliable, precision Aluminium manifolds from India.

From Drawing to Delivery: We accept 3D STEP or IGES files, 2D DXF/DWG drawings, or even a concept sketch, and take full responsibility for converting the design into a manufacturable, pressure-tested Aluminium manifold. Our DFM review process catches potential manufacturing issues before tooling, saving time and cost.

Billet Machined — No Porosity, No Surprises: Unlike die-cast or sand-cast manifolds that can harbour internal porosity leading to leak failures in service, our billet-machined Aluminium manifolds are machined from solid, certified Aluminium bar or plate stock. Every manifold is hydrostatic or pneumatic pressure tested before shipment — no exceptions.

Flexible Customisation: Standard port sizes (BSP, NPT, metric SAE), non-standard port configurations, mixed thread forms, integral check valves, needle valves, pressure gauge ports, and mounting feet are all accommodated. We work to any Aluminium alloy grade specified by the customer.

Surface Treatment Expertise: We offer a full range of Aluminium surface treatments in-house — decorative and hard anodising, chromate conversion coating (Alodine), powder coating, and PTFE coating — ensuring the manifold arrives ready for direct installation without additional finishing.

Global Compliance Documentation: We supply EN 10204 2.1 / 3.1 material certificates, pressure test reports, dimensional inspection reports, and REACH declarations with every shipment. Third-party inspection is available on request.

Packaging and Shipping

Aluminium pipe manifolds are individually wrapped in VCI (Volatile Corrosion Inhibitor) polyethylene bags to prevent surface tarnishing during transit. Open ports are plugged with plastic port plugs or foam plugs to prevent ingress of dust and moisture. Manifolds are packed in custom-foam-lined wooden crates or strong corrugated cartons depending on size and quantity. Larger manifold blocks are individually crated with timber bracing. All packaging is clearly labelled with part number, revision, material, alloy, and customer order reference. Export documentation includes commercial invoice, packing list, certificate of origin, MTC, pressure test certificate, and dimensional inspection report.

Customer Testimonials

“We source custom Aluminium compressed air manifolds and pneumatic distribution blocks from Cable Glands India for our automation equipment. The quality is outstanding — all ports are accurately positioned, threads are perfect, and pressure testing is done as standard. Their ability to take our STEP files and deliver a finished, tested manifold in 5 weeks is impressive. Their technical communication is excellent — they genuinely understand the engineering requirements, not just the drawing.”

— Thomas A. Blackwell, Engineering Director, Birmingham, United Kingdom

“We specified AA6061-T6 hard-anodised Aluminium manifolds for a pneumatic conveying system project in Germany. Cable Glands India delivered to our exact drawing specifications, complete with EN 10204 3.1 MTCs and pressure test certificates. The hard anodising quality was excellent — uniform coating, correct Ra on ports. Delivery was on schedule at 6 weeks. We will certainly use them again.”

— Dieter K. Hartmann, Project Manager, Frankfurt, Germany

Typical Q & A Session — Aluminum Pipe Manifolds

Q1. What is a pipe manifold and what is it used for?
A. A pipe manifold is a multi-port block that connects a single supply source to multiple distribution outlets, or collects multiple flows into a single outlet. In compressed air systems, a manifold distributes shop air from a main header to multiple machine circuits. In hydraulic systems, manifold blocks replace multiple individual valve bodies and pipework with a single compact block.

Q2. Why is Aluminium preferred over Steel or Brass for manifolds?
A. Aluminium is approximately one-third the density of Steel, making manifolds significantly lighter — critical in aerospace, automotive, and portable equipment. Aluminium also machines exceptionally well (fast cycle times, good surface finish), anodises easily for excellent corrosion protection, and is generally more cost-effective for medium-pressure (up to 200 bar) manifold applications.

Q3. What is the maximum working pressure for Aluminium pipe manifolds?
A. This depends on alloy grade, wall section, port size, and configuration. Typical compressed air manifolds (AA6061-T6) handle 10–16 bar. Hydraulic Aluminium manifolds can be designed for up to 350 bar with appropriate wall sections and proven by hydrostatic testing. Please specify your operating pressure when enquiring.

Q4. Can you produce custom-designed Aluminium manifolds from our 3D CAD drawings?
A. Yes. We accept STEP, IGES, or Parasolid 3D files, DXF/DWG 2D drawings, or PDF drawings. Our engineering team provides a DFM review and quotation, typically within 48 hours of receiving the files.

Q5. What port thread standards do you offer?
A. BSP (BSPP and BSPT), NPT, metric ISO (M) threads, SAE O-ring boss (ORB — JIC), and DIN hydraulic port forms. Mixed port configurations (e.g., NPT inlet with BSP outlets) are available.

Q6. Do you supply anodised Aluminium manifolds?
A. Yes. We offer Type II (decorative/protective) and Type III (hard) anodising in-house. Colour anodising (black, gold, clear) is available. Hard anodising is recommended for high-cycle pneumatic and hydraulic manifolds to resist wear and erosion at port faces.

Q7. What alloy do you recommend for seawater or marine applications?
A. AA5083-H111 (Marine Grade) is specifically recommended for seawater and aggressive salt-spray environments due to its high Magnesium content and excellent corrosion resistance. It is widely used in marine, offshore, and coastal HVAC applications.

Q8. Can you supply Aluminium manifolds for food and beverage applications?
A. Yes. Anodised or hard-anodised AA6061-T6 manifolds are used in food processing pneumatic systems. For direct food-contact applications, we can supply with FDA-compliant anodised finish. Please specify the application and regulatory requirements when enquiring.

Q9. Do you offer pressure testing as standard?
A. Yes. All Aluminium pipe manifolds are hydrostatic or pneumatic leak-tested to 1.5× the specified working pressure before shipment. Test certificates are supplied with each shipment on request.

Q10. What is your lead time for custom manifolds?
A. Standard configurations: 4–6 weeks. Custom engineered manifolds: 6–8 weeks. Complex hydraulic blocks: 8–10 weeks. First-article samples: 3–4 weeks.

Q11. What is your MOQ?
A. For standard distribution manifold designs: MOQ is 10 pieces. For custom/bespoke designs: MOQ is 5 pieces (NRE tooling or CNC programming charges may apply for very small quantities). We are flexible — please discuss your requirement.

Q12. Can you supply Aluminium manifolds for hydraulic press circuits?
A. Yes. We manufacture high-pressure Aluminium manifold blocks for hydraulic press and machine tool circuits. AA7075-T6 is recommended for the highest pressure requirements. Wall sections and port geometry are designed for the specified operating pressure with appropriate safety factors.

Q13. Do you supply port plugs or caps with manifolds?
A. Yes. We supply matching threaded Aluminium or Brass port plugs for any unused ports. Nylon or Brass plug sets can be specified at order time.

Q14. Can you supply sub-base mounted valve manifolds?
A. Yes. We manufacture sub-base Aluminium manifolds for ISO 15407-1, ISO 5599-2, NAMUR, and custom solenoid valve mounting footprints. Please provide the valve model or mounting footprint drawing.

Q15. Do you supply documentation for aerospace or defence applications?
A. Yes. For aerospace and defence applications, we supply EN 10204 3.1 or 3.2 material certificates, first article inspection reports (FAIR per AS9102), dimensional inspection reports, and surface treatment certificates (anodise or chromate per MIL specifications).

Q16. Are your Aluminium manifolds CE marked for EU pressure equipment?
A. For EU customers requiring PED 2014/68/EU compliance, we can supply supporting documentation and design calculations. CE marking and notified body involvement depend on the pressure category — please consult with our technical team.

Glossary of Terms

Manifold: A multi-port fluid distribution block that connects one or more inlets to multiple outlets or vice versa, replacing a complex pipework network with a single machined block. BSP (British Standard Pipe): A family of standard pipe thread forms — BSPP (parallel, seals on face washer or O-ring) and BSPT (taper, seals on thread engagement). SAE ORB (O-ring Boss): A straight-thread port form with an O-ring sealing groove on the face of the port boss — used in hydraulic manifolds for positive, leak-free port connections. Hard Anodise (Type III): An electrochemical surface treatment that creates a very hard (60–70 HRC equivalent), thick (25–100 µm) anodic oxide layer on Aluminium, providing excellent wear and corrosion resistance. Billet Machining: Manufacturing components by removing material from a solid block (billet) of alloy using CNC cutting tools, as opposed to casting or forming. Billet parts have superior density, mechanical properties, and dimensional precision. MIL-DTL-5541: US Military specification for chemical conversion coatings on Aluminium and Aluminium alloys (Alodine / Iridite), providing corrosion protection and paint adhesion. DFM (Design for Manufacturability): An engineering review process that evaluates a design to identify and resolve features that would be difficult, expensive, or impossible to manufacture efficiently, prior to production.
