Phosphor Bronze Pressed Parts & Bronze Stamping – Precision Manufactured Components

High-Performance Phosphor Bronze Stamped & Pressed Components for Industrial Applications

As a leading manufacturer of precision phosphor bronze pressed parts and bronze stamping solutions, we specialize in producing high-quality stamped, formed, and pressed bronze components for diverse industrial applications worldwide. Our phosphor bronze stamping capabilities combine advanced manufacturing technology with decades of metalworking expertise to deliver components that meet the most demanding specifications for electrical conductivity, corrosion resistance, and mechanical performance.

Our phosphor bronze pressed parts manufacturing facility is equipped with state-of-the-art progressive dies, compound stamping tools, and precision forming equipment capable of producing components ranging from simple flat stampings to complex deep-drawn parts. We work with all standard phosphor bronze alloys including C51000, C52100, C52400, and specialty grades, ensuring optimal material selection for each application.

Phosphor Bronze Pressed Parts – Superior Material Properties for Critical Applications

Phosphor bronze pressed parts represent one of the most versatile categories of stamped metal components, combining the excellent spring properties of bronze alloys with the formability required for complex pressed configurations. Our phosphor bronze pressing capabilities produce components with exceptional dimensional accuracy, superior surface finish, and consistent mechanical properties across production runs.

Material Specifications & Alloy Grades

We manufacture phosphor bronze pressed parts using premium grade alloys conforming to international standards:

C51000 (5% Tin Phosphor Bronze)

Composition: Cu 94.8%, Sn 5.0%, P 0.2%
Tensile Strength: 380-520 MPa
Applications: Electrical contacts, spring components, fasteners
Excellent fatigue resistance and electrical conductivity

C52100 (8% Tin Phosphor Bronze)

Composition: Cu 91.8%, Sn 8.0%, P 0.2%
Tensile Strength: 415-655 MPa
Superior spring characteristics
Ideal for high-stress pressed components requiring maximum resilience

C52400 (10% Tin Phosphor Bronze)

Composition: Cu 89.8%, Sn 10.0%, P 0.2%
Tensile Strength: 450-690 MPa
Highest strength phosphor bronze alloy
Optimal for heavy-duty pressed parts and wear-resistant applications

Manufacturing Capabilities

Our phosphor bronze pressing operations utilize precision tooling and controlled manufacturing processes:

Thickness Range: 0.1mm to 6.0mm
Pressing Force: Up to 400 tons capacity
Tolerances: ±0.05mm to ±0.1mm depending on part geometry
Surface Finish: Ra 0.4 to 1.6 μm as-pressed
Temper Conditions: Soft annealed (O), quarter hard (H01), half hard (H02), hard (H04)

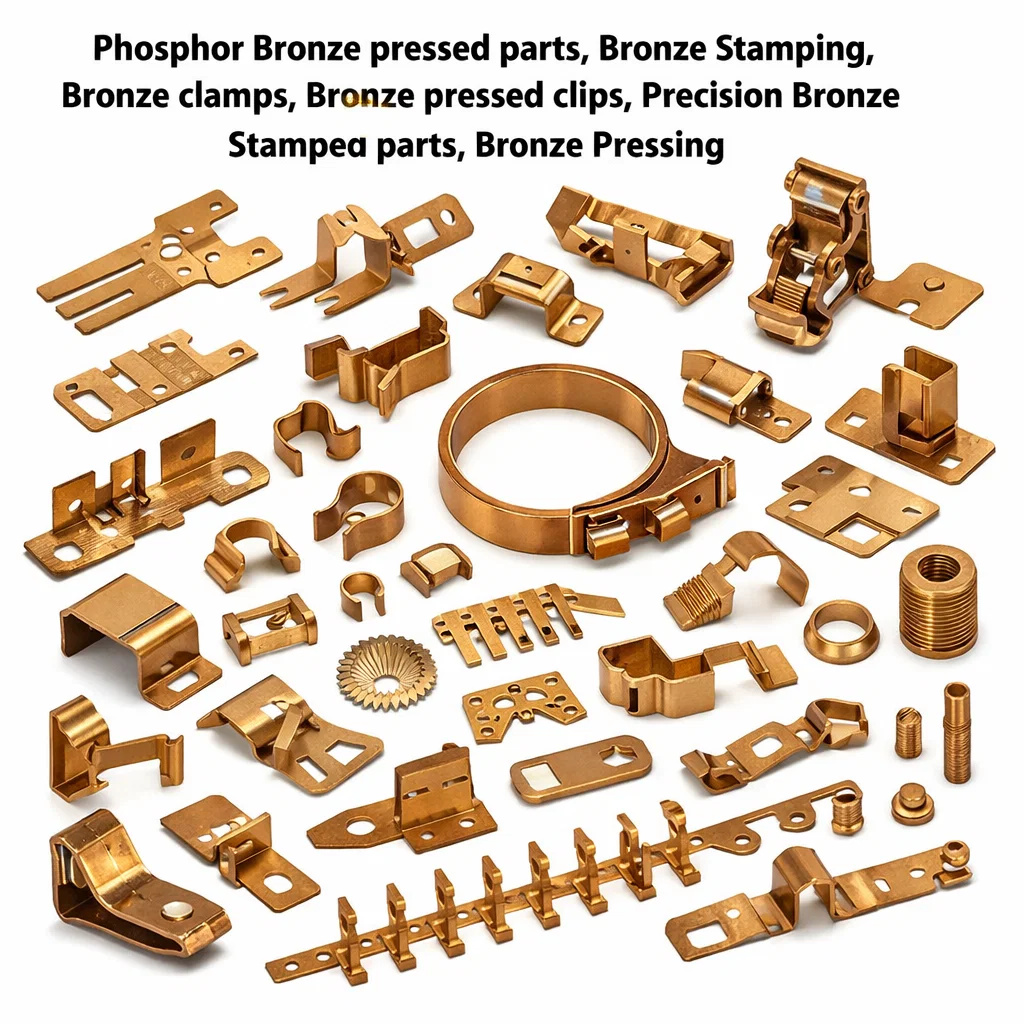

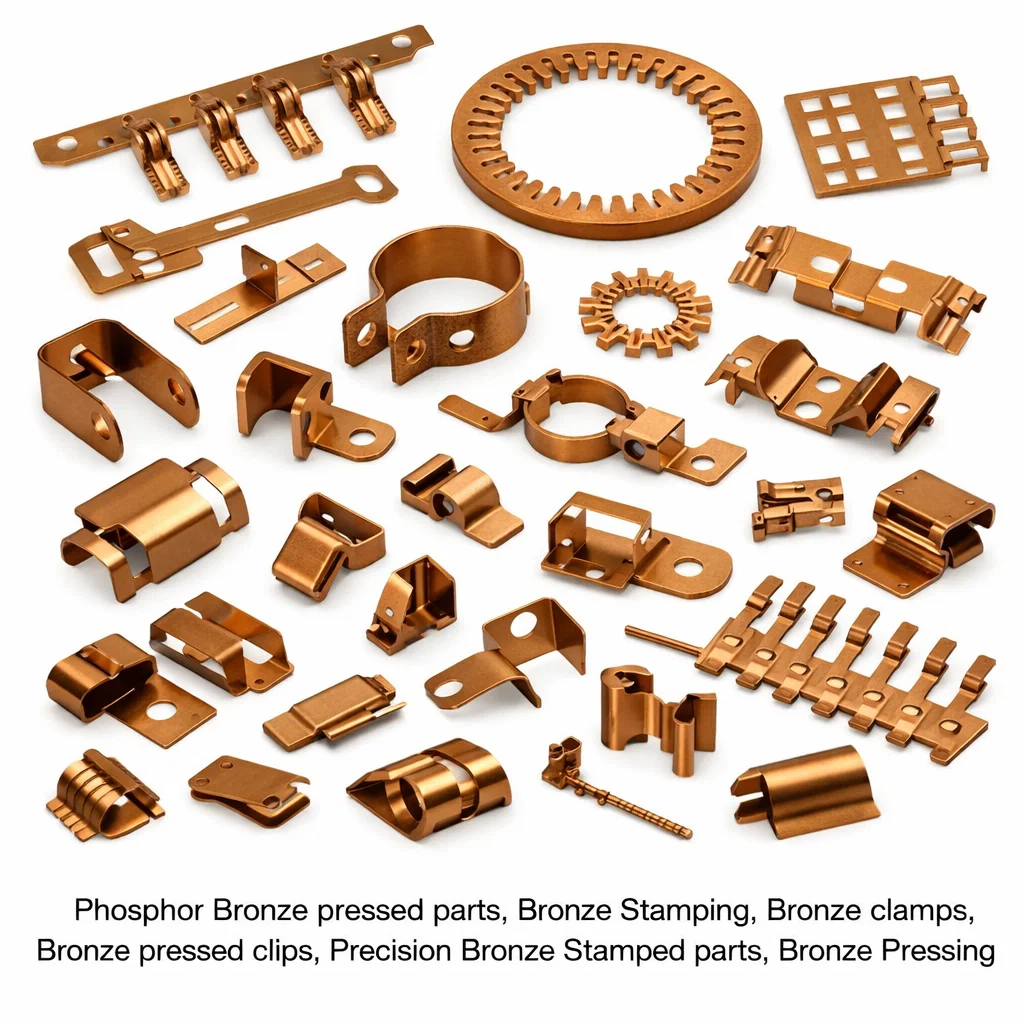

Common Phosphor Bronze Pressed Parts

Electrical terminal strips and connector bodies
Wave springs and Belleville washers
Bearing retainers and thrust washers
Valve seats and diaphragms
Instrumentation components
Shielding cans and EMI housings
Precision shims and spacers
Spring clips and retainers

Quality Standards Compliance

All phosphor bronze pressed parts are manufactured to international standards including ASTM B103, BS 2870, DIN 17666, and customer-specific specifications. Complete material certifications and dimensional inspection reports are provided with every shipment.

Bronze Stamping – Advanced Progressive & Compound Die Manufacturing

Our bronze stamping operations encompass the complete spectrum of sheet metal stamping processes, from simple blanking operations to complex progressive die stamping of multi-feature components. We specialize in high-volume production runs with consistent quality, delivering millions of precision-stamped bronze parts annually to customers in automotive, electrical, plumbing, and industrial equipment sectors.

Progressive Die Stamping Capabilities

Progressive die stamping represents our core competency in bronze component manufacturing. Our progressive tooling enables multiple operations—piercing, blanking, forming, embossing, and coining—to be performed in sequence as the bronze strip advances through the die stations:

Multi-Station Progressive Dies:

Up to 20 progressive stations for complex geometries
Pilot-guided precision for ±0.03mm positional accuracy
Integrated forming, drawing, and finishing operations
Production speeds: 60-200 strokes per minute depending on complexity

Material Utilization Optimization:

Advanced nesting algorithms minimize scrap rates
Strip layouts designed for 75-90% material utilization
Coil feeding systems for uninterrupted production
Automated scrap removal and part collection

Compound & Transfer Stamping

For parts requiring simultaneous operations or requiring transfer between stations, our compound and transfer stamping capabilities provide:

Simultaneous blanking and piercing in single stroke
Complex forming operations with multiple draw stages
Robotic transfer between independent stamping stations
Ideal for heavy-gauge bronze (3mm-6mm thickness)

Bronze Alloys for Stamping

We stamp all commercial bronze and phosphor bronze alloys:

Commercial Bronze (C22000): 90% Cu, 10% Zn – Excellent formability
Red Brass (C23000): 85% Cu, 15% Zn – Good corrosion resistance
Phosphor Bronze (C51000-C52400): Superior spring properties
Aluminum Bronze (C61400): High strength applications
Silicon Bronze (C65500): Marine and architectural components

Surface Finishing for Stamped Bronze

As-Stamped: Natural bronze finish with light oil coating
Deburring: Vibratory finishing removes sharp edges
Polishing: Buffing to mirror finish for decorative parts
Plating: Tin, nickel, or chrome plating for enhanced properties
Passivation: Chemical treatment for corrosion resistance
Lacquering: Clear coat protection for architectural components

Bronze Clamps – Heavy-Duty Fastening & Grounding Solutions

Bronze clamps manufactured through precision stamping and forming processes provide superior electrical conductivity, corrosion resistance, and mechanical strength for demanding clamping applications. Our bronze clamp manufacturing combines robust material selection with engineered geometries to ensure reliable performance in electrical grounding, pipe mounting, cable management, and industrial fastening applications.

Types of Bronze Clamps Manufactured

Electrical Grounding Clamps:

Earth bonding clamps for electrical installations
Lightning protection system clamps
Grounding rod connectors
Bus bar connection clamps
Material: High-conductivity phosphor bronze C52100
Current carrying capacity: Up to 600A depending on size

Pipe & Tube Clamps:

Single-bolt pipe clamps (15mm to 150mm diameter)
Two-piece hinged clamps for easy installation
U-bolt bronze clamps with backing plates
Vibration-dampening pipe supports
Corrosion-resistant for marine and chemical applications

Cable Management Clamps:

Saddle-type cable clamps
P-clip cable fasteners in phosphor bronze
Multi-cable organizing clamps
Strain relief clamps for heavy cables
Sizes: 6mm to 75mm cable diameter

Spring-Loaded Bronze Clamps:

Constant-tension spring clamps
Battery terminal clamps
Quick-release fastening clamps
Hose clamps with bronze spring bands

Manufacturing Process for Bronze Clamps

Bronze clamps are manufactured through multi-stage processes:

Blanking: Precision cutting of clamp profiles from bronze strip
Forming: Progressive bending and forming to create clamping geometry
Threading: Tapping or nut welding for fastening hardware
Heat Treatment: Stress relieving for dimensional stability
Surface Treatment: Passivation or protective coating as required
Assembly: Integration of fastening hardware (bolts, nuts, washers)

Technical Specifications

Material Thickness: 1.5mm to 5.0mm depending on clamp size
Clamping Force: Engineered for specific holding requirements
Temperature Range: -40°C to +200°C continuous operation
Corrosion Resistance: Excellent resistance to moisture, salt spray, industrial atmospheres
Compliance: RoHS compliant, REACH registered materials

Bronze Pressed Clips – Precision Spring Components for Assembly & Retention

Bronze pressed clips are specialized spring components manufactured through precision stamping and forming operations to provide reliable retention, fastening, and electrical contact functions. Our bronze clip manufacturing expertise spans decades, producing millions of clips annually for automotive, electronics, industrial equipment, and consumer product applications.

Categories of Bronze Pressed Clips

Retaining Clips:

E-clips (external retaining rings)
C-clips for shaft retention
Snap rings in phosphor bronze
Push-on fasteners and speed clips
Wave retaining rings for axial retention

Spring Contact Clips:

Battery contact springs
Electrical connector clips
PCB mounting clips with spring pressure
Grounding clips for EMI shielding
Wire-to-board spring contacts

Panel Fastening Clips:

U-clips for panel attachment
Edge clips for trim retention
Push-mount clips for tool-free assembly
Quarter-turn fastener clips
Captive screw clips

Wire & Cable Clips:

P-clips in phosphor bronze
Cable routing clips
Wire harness retention clips
Conduit mounting clips
Spring-loaded cable guides

Material Selection for Pressed Clips

Clip performance depends on optimal material selection:

For Maximum Spring Force:

Phosphor Bronze C52400 (10% Sn) – Half-hard to full-hard temper
Ultimate tensile strength 620-690 MPa
Excellent fatigue resistance for repeated cycling

For Electrical Contact:

Phosphor Bronze C52100 (8% Sn)
Conductivity: 15% IACS minimum
Low contact resistance with gold or tin plating options

For Corrosion Resistance:

Silicon Bronze C65500
Aluminum Bronze C61400
Superior resistance to marine and chemical environments

Manufacturing Precision

Our bronze clip manufacturing maintains exacting tolerances:

Dimensional Accuracy: ±0.02mm on critical features
Spring Rate Consistency: ±5% variation across production lots
Surface Finish: Ra 0.8μm typical, Ra 0.4μm for plated clips
Burr-Free Edges: Precision shearing with minimal burr formation
Repeatability: Statistical process control ensures part-to-part consistency

Testing & Validation

Every bronze clip design undergoes comprehensive testing:

Retention Force Testing: Verification of holding capacity
Fatigue Testing: Cycling tests for spring life expectancy
Salt Spray Testing: Corrosion resistance per ASTM B117
Electrical Contact Resistance: For contact clips per MIL-STD specifications
Dimensional Inspection: CMM verification of critical dimensions

Precision Bronze Stamped Parts – Micron-Level Accuracy for Critical Applications

Precision bronze stamped parts represent the pinnacle of metal stamping technology, combining tight-tolerance tooling, advanced press control, and rigorous quality systems to produce components with micron-level dimensional accuracy. Our precision stamping operations serve industries where component accuracy directly impacts performance—aerospace instrumentation, medical devices, precision electronics, and measurement equipment.

Precision Stamping Capabilities

Tolerance Capabilities:

Standard Precision: ±0.05mm (±0.002″)
High Precision: ±0.025mm (±0.001″)
Ultra-Precision: ±0.01mm (±0.0004″) on critical features
Positional Accuracy: ±0.02mm using precision pilot systems
Flatness: Within 0.03mm across component surface

Thickness Control:

Material thickness tolerance: ±0.01mm
Consistent thickness throughout formed features
Controlled thinning in deep-drawn areas
Uniform wall thickness in complex geometries

Advanced Stamping Technologies

CNC Servo Press Technology:

Programmable press motion profiles
Force and position monitoring in real-time
Adaptive control for consistent part quality
Reduced die wear and extended tool life

High-Speed Precision Stamping:

Production rates: 200-400 strokes per minute
Minimal vibration for dimensional stability
Automated in-process inspection
Statistical process control with 100% data logging

Micro-Stamping Capabilities:

Minimum feature size: 0.3mm
Part sizes from 2mm × 2mm
Applications: Watch components, micro-electronics, sensors
Tooling life optimization for million+ part runs

Precision Bronze Parts Applications

Aerospace & Defense:

Instrumentation components requiring AS9100 compliance
Electrical connectors with precise contact geometry
Sensor housings and mounting brackets
Shielding components for avionics

Medical Devices:

Surgical instrument components
Electrical contacts for diagnostic equipment
Precision springs for medical devices
Biocompatible bronze alloys available

Electronics & Telecommunications:

RF shielding components with precise dimensions
Battery contacts and terminal strips
Connector pins and sockets
Micro-switches and sensing elements

Precision Instrumentation:

Pressure sensor diaphragms
Spring elements for measurement devices
Electrical terminals for test equipment
Calibration fixtures and reference components

Quality Assurance for Precision Parts

Our precision bronze stamping operations maintain the highest quality standards:

Inspection Equipment:

Coordinate Measuring Machines (CMM) with 0.001mm resolution
Optical comparators for profile verification
Surface roughness testers
Hardness testing (Rockwell, Vickers)
Metallurgical microscopy for grain structure analysis

Documentation & Traceability:

First Article Inspection Reports (FAIR)
Material test certificates with heat traceability
Dimensional inspection data for every production lot
Statistical process control (SPC) charts
PPAP documentation for automotive applications

Standards Compliance:

ISO 9001:2015 Quality Management System
AS9100 for aerospace applications
IATF 16949 for automotive components
RoHS and REACH compliance documentation
Customer-specific quality requirements

Bronze Pressing – Advanced Forming Technology for Complex Geometries

Bronze pressing operations encompass the complete range of metal forming processes used to transform flat bronze sheet and strip into three-dimensional components through controlled plastic deformation. Our bronze pressing capabilities include deep drawing, stamping, embossing, coining, and hydroforming, enabling us to manufacture components ranging from shallow pressed parts to complex deep-drawn enclosures.

Deep Drawing of Bronze Components

Deep drawing is a specialized pressing process for creating hollow bronze parts with depths exceeding their diameters. Our deep drawing capabilities include:

Single-Stage Drawing:

Draw ratios up to 2.0:1
Cup-shaped components
Shallow enclosures and covers
Optimal for phosphor bronze C51000 (excellent ductility)

Multi-Stage Progressive Drawing:

Draw ratios up to 6:1 through sequential reductions
Complex geometries with changing wall thicknesses
Cylindrical, rectangular, and irregular cross-sections
Intermediate annealing between stages for work-hardened alloys

Applications of Deep Drawn Bronze:

Electrical housing and enclosures
Bearing cups and bushings
Filter housings for hydraulic systems
Precision containers and vessels
Sensor housings and instrumentation cases

Forming & Bending Operations

Precision Bending:

Minimum bend radius: 0.5× material thickness for annealed bronze
Bend angles: 0° to 180° with ±0.5° accuracy
Springback compensation through tooling design
Multiple bend configurations in progressive operations

Flanging & Hemming:

Edge flanging for reinforcement and assembly
Hemming operations for smooth, safe edges
Stretch flanging for complex contours
Shrink flanging for concave edges

Embossing & Coining:

Raised or recessed features for part identification
Strengthening ribs and structural elements
Decorative patterns and textures
High-pressure coining for sharp details and tight tolerances

Hydroforming of Bronze Components

For complex geometries difficult to achieve through conventional pressing, our hydroforming capabilities offer:

Fluid pressure forming for even material distribution
Complex contours without tool marks
Reduced springback compared to mechanical forming
Excellent surface finish
Applications: Architectural components, complex housings

Material Preparation for Bronze Pressing

Optimal pressing results require proper material preparation:

Temper Selection:

Soft Annealed (O Temper): Maximum formability for deep drawing
Quarter Hard (H01): Balanced formability and strength
Half Hard (H02): Moderate forming with increased strength
Hard (H04): Minimal forming, maximum spring properties

Lubrication Systems:

Dry film lubricants for clean operations
Oil-based lubricants for severe forming
Water-soluble lubricants for easy cleanup
Application methods: Spray, roller coating, immersion

Blank Preparation:

Precision shearing or laser cutting for complex blanks
Edge deburring for tool protection
Surface cleaning for defect-free forming
Grain direction optimization for directional properties

Process Controls for Bronze Pressing

Press Control Systems:

Programmable force and position monitoring
Real-time adjustment for consistent results
Die protection systems prevent overload damage
Automatic lubrication systems

Temperature Management:

Controlled die temperature for consistent forming
Warm forming (150-200°C) for difficult geometries
Cooling systems prevent work hardening
Thermal imaging for process monitoring

Quality Monitoring:

In-die sensors detect forming defects
Automated dimensional verification
Surface inspection systems
Wrinkle and tear detection

Secondary Operations

Bronze pressed parts often require secondary operations:

Trimming: Removal of excess material from drawn parts
Machining: CNC operations for precise features
Threading: Tapping or thread forming operations
Assembly: Welding, brazing, or mechanical joining
Heat Treatment: Stress relieving or hardening as required
Surface Finishing: Polishing, plating, coating, or passivation

Technical Specifications Summary

Material Standards Compliance

ASTM B103 – Phosphor Bronze Plate, Sheet, Strip & Rolled Bar
ASTM B139 – Phosphor Bronze Rod, Bar & Shapes
BS 2870 – Copper and Copper Alloys: Sheet & Strip
DIN 17666 – Phosphor Bronze Strip
EN 1652 – Copper & Copper Alloys: Plate, Sheet, Strip

Manufacturing Quality Standards

ISO 9001:2015 – Quality Management System Certified
AS9100 – Aerospace Quality Management (available)
IATF 16949 – Automotive Quality Management (available)
RoHS Compliant – Restriction of Hazardous Substances
REACH Registered – European Chemical Regulation

Dimensional Capabilities

Parameter	Range	Tolerance
Material Thickness	0.1mm – 6.0mm	±0.01mm to ±0.05mm
Part Dimensions	5mm × 5mm to 500mm × 500mm	±0.05mm to ±0.2mm
Hole Diameter	0.5mm minimum	±0.02mm
Bend Radius	0.5t to 3t	±0.1mm
Flatness	Across entire part	0.03mm to 0.1mm

Why Choose Our Phosphor Bronze Pressing & Stamping Services

Manufacturing Excellence

40+ Years Experience in bronze component manufacturing
State-of-the-Art Equipment including CNC servo presses up to 400 tons
Advanced Tooling with precision progressive dies and custom forming tools
Vertical Integration from material sourcing to finished component delivery

Global Export Expertise

Export to USA, UK, Canada, Australia, Europe, and Middle East
Complete export documentation and logistics support
Compliance with international standards and customer specifications
Material certifications and inspection reports with every shipment

Engineering Support

Design for Manufacturing (DFM) consultation
Tooling design and optimization
Material selection guidance for optimal performance
Prototyping and pre-production validation

Quality Assurance

100% inspection capability with advanced measuring equipment
Statistical process control for consistent production
Full traceability from raw material to finished part
Third-party testing and certification available

Competitive Advantages

High-volume production capacity (millions of parts annually)
Flexible production runs from prototypes to mass production
Quick turnaround times with efficient tooling development
Cost-effective manufacturing without compromising quality

Industries Served

Our phosphor bronze pressed parts and stamping solutions serve diverse industries:

Electrical & Electronics: Connectors, terminals, contacts, shielding
Automotive: Electrical components, fasteners, brackets, clips
Aerospace & Defense: Precision components meeting stringent standards
Telecommunications: RF components, grounding hardware, connector parts
Industrial Equipment: Bearings, bushings, springs, fasteners
Marine Applications: Corrosion-resistant components, fittings, hardware
Medical Devices: Biocompatible components, instrument parts
Plumbing & HVAC: Valves components, fittings, mounting hardware
Instrumentation: Precision parts for measuring and testing equipment
Consumer Products: Durable components for appliances and tools

Request a Quote for Phosphor Bronze Stamping & Pressed Parts

Whether you require high-volume production of standard bronze pressed parts or custom-engineered precision components, our team is ready to assist you. We offer:

Free Design Consultation – Review your requirements and recommend optimal solutions
Rapid Quotation – Competitive pricing with detailed technical evaluation
Sample Production – Prototype and pre-production samples for validation
Technical Documentation – Complete material certifications and inspection reports

Related Parts: Phosphor bronze pressed parts, bronze stamping, precision bronze stampings, bronze clamps, bronze pressed clips, phosphor bronze components, bronze pressing, deep drawn bronze, progressive die stamping bronze, C51000 stamping, C52100 pressed parts, electrical bronze components, corrosion resistant bronze parts, precision metal stamping, custom bronze pressing, bronze spring clips, bronze retaining clips, bronze fasteners, industrial bronze components, export quality bronze parts

Manufacturing Processes & Techniques:

Bronze Blanking: The process of cutting a flat shape (a “blank”) from a bronze strip or sheet, which is often the first stage in producing a stamped part.
Bronze Coining: A high-precision stamping process that applies intense pressure to bronze to create fine details, sharp corners, or specific surface textures on features like medals or electrical contacts.
Bronze Deep Drawing: A form of pressing where a bronze blank is radially drawn into a forming die to create seamless, hollow components like bushings or small cups.
Bronze Embossing: A stamping technique that creates a raised or recessed design on the surface of the bronze part without piercing the material.
Bronze Four-Slide Stamping: A complex, multi-directional forming process ideal for producing intricate, small bronze parts like clips, brackets, or connectors with multiple bends.
Bronze Progressive Die Stamping: The high-volume, automated process of feeding a bronze coil through a series of die stations, with each station performing a different operation (pierce, bend, form) to produce a finished part with each press stroke.
Bronze Piercing: The stamping operation of cutting holes or shapes into a bronze part.
Bronze Bending/Forming: The plastic deformation of bronze along a straight axis to create an angle or shape.

Material Types & Forms:

Bronze Alloy Strip/Coil: The raw material feedstock (in specific widths and thicknesses) used in high-volume stamping and progressive die presses.
Bronze Alloy Sheet: Flat-rolled bronze stock, typically used for fabricated or larger pressed parts.
Phosphor Bronze (C51000, C52100): The most common bronze alloy for stamped parts, prized for its excellent spring properties, fatigue resistance, and good electrical conductivity.
Aluminum Bronze (C95400, C95500): Used for stamped parts requiring higher strength and superior corrosion resistance, especially in marine environments.
Silicon Bronze (C65500): Known for good corrosion resistance and ductility, often used in architectural and marine stamped hardware.
Beryllium Copper (Alloy 172, C17200): While technically a copper alloy, it is often grouped here; it offers very high strength and conductivity, used for premium springs and connectors.

Specific Part Types & Components:

Bronze Electrical Contacts: Stamped components used in switches, relays, and breakers due to bronze’s good conductivity and arc resistance.
Bronze Spring Clips & Contacts: Precision-stamped parts, often from phosphor bronze, that provide a resilient electrical or mechanical connection.
Bronze Bushings & Washers: Simple pressed or stamped cylindrical parts used as spacers or bearings.
Bronze Shims: Thin, stamped precision parts used for calibration and adjusting clearances.
Bronze Terminals & Lugs: Electrical connectors stamped from bronze for reliable conductivity and mechanical strength.
Bronze Architectural Hardware: Stamped decorative or functional components like plaques, hinges, or escutcheons.
Bronze Gaskets & Seals: Stamped shapes used in fluid systems, often from softer bronze alloys.
Bronze Heat Sink Fins: Stamped components that are assembled into larger units for thermal management.
Bronze Diaphragms: Thin, precisely stamped discs used in sensors, pumps, and regulators.

Industry & Application Keywords:

Electrical Stamping Parts: The broad category covering bronze components used in electrical and electronic applications.
Automotive Bronze Components: Stamped bronze parts used in older or classic vehicles, switches, or certain bearing applications.
Marine Grade Bronze Stampings: Components made from corrosion-resistant bronzes like aluminum bronze for shipbuilding and offshore use.
Telecommunication Hardware: Includes stamped bronze springs, shields, and contacts in communication equipment.
Power Distribution Parts: Stamped bronze contacts and conductive components used in circuit breakers and switchgear.
Precision Instrument Components: Small, intricate stamped bronze parts used in watches, meters, and gauges.
Low-Voltage Switchgear Components: A key application area for phosphor bronze stamped contacts and springs.

Quality & Technical Terms:

Precision Bronze Stamping: Emphasizes tight tolerances and high repeatability in the stamping process.
Custom Bronze Stampings: Refers to parts manufactured to unique customer specifications rather than standard catalog items.
Bronze Spring Tempering: A heat treatment process applied to stamped phosphor bronze parts to achieve desired spring properties and hardness.
EDM Bronze Electrodes: Copper-tungsten or other bronze alloys stamped or machined into electrodes for electrical discharge machining (EDM).

Related Terms:

“Phosphor bronze stamped spring manufacturer”
“Custom bronze electrical contacts stamping”
“High volume bronze progressive die stamping”
“Bronze blanking and piercing services”
“Supplier of small precision bronze stampings”
“Aluminum bronze marine stamped parts”
“Bronze bushing stamping cost”
“Prototype bronze stamped parts”

Contact us today to discuss your phosphor bronze pressing and stamping requirements. Our engineering team will work with you to develop cost-effective manufacturing solutions that meet your exact specifications.

Bronze Pressed parts, Phosphor Bronze pressed parts, Bronze Stamping
