Bronze Substation Connectors – Manufacturer & Exporter from India
Cable Glands India is a leading manufacturer and exporter of Bronze Substation Connectors — precision-engineered electrical connectors designed for high-voltage substation environments, power distribution networks, and transmission infrastructure. Our bronze substation connectors provide reliable, maintenance-free electrical connections between bus bars, transformer terminals, cable lugs, and earthing systems in HV, EHV and HVDC substations.

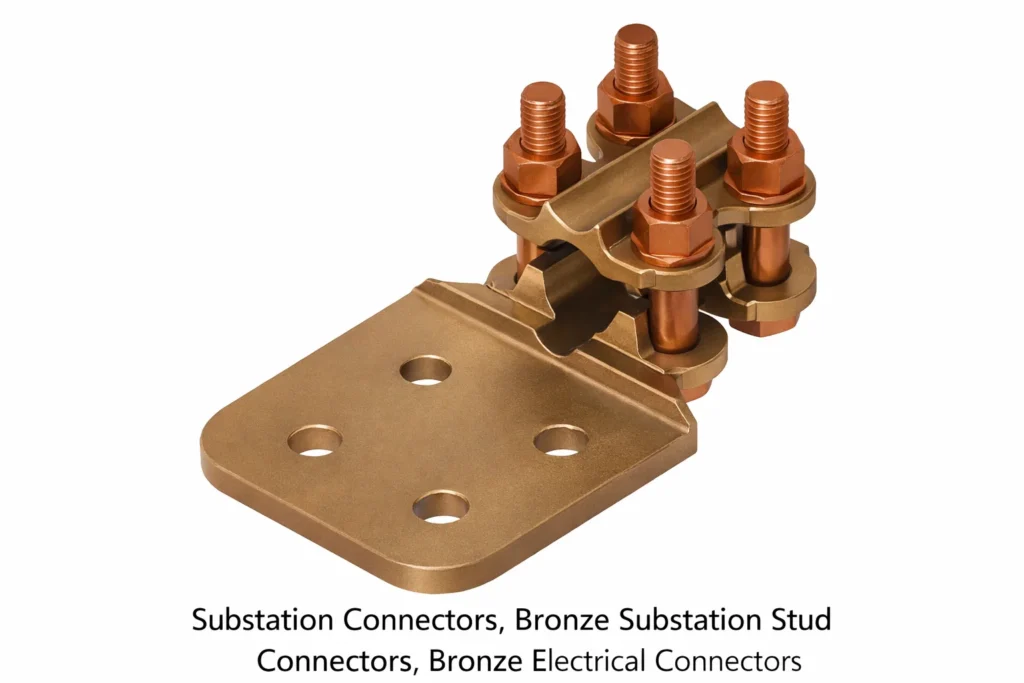

What Are Bronze Substation Connectors or Bronze Stud Connectors for electrical substations?
Bronze substation connectors are heavy-duty cast or forged bronze fittings used in electrical substations to connect conductors, cables, and equipment terminals under high mechanical stress and thermal cycling conditions. They are used in 11 kV, 33 kV, 66 kV, 132 kV, 220 kV, and 400 kV substations for bus bar jointing, equipment terminal connections, and earthing grid bonding. The use of bronze alloys provides excellent corrosion resistance, high conductivity, and resistance to galvanic corrosion in mixed-metal substation environments.
Types of Bronze Substation Connectors
- T-Clamp Substation Connectors – For tapping off from main bus bar to equipment
- Parallel Groove Substation Connectors – For inline or branch connections of round conductors
- Compression Substation Connectors – For permanent crimped connections to cable lugs and terminals
- Bolted Bus Bar Connectors – For rigid mechanical and electrical connections between flat bus bars
- Flexible Substation Connectors – Tinned copper braid with bronze end fittings for vibration-tolerant connections
- Earthing Grid Connectors – For bonding earth conductors to equipment frames, structures, and ground rods
Key Features & Specifications
- Material: Leaded Tin Bronze (C83600 / LG2), Aluminum Bronze (C95400), Silicon Bronze (C65500), Phosphor Bronze (C51000)
- Conductor Compatibility: Copper, ACSR, AAC, AAAC, copper bus bar (flat and round)
- Voltage Range: 11 kV to 400 kV substation applications
- Current Rating: 200 A to 4000 A depending on conductor size
- Bolt Material: Stainless Steel SS304 / SS316 or Silicon Bronze
- Surface Finish: Plain, Electro-Tinned, or Silver-Plated contact surfaces
- Standards: ASTM B62, ASTM B584, BS 2874, IS 318, IEC 61284, IEEE C37.20
- Temperature Range: -40°C to +120°C continuous operating temperature
Technical Specifications Table
| Connector Type | Conductor Range | Current Rating (A) | Voltage Rating | Material |
|---|---|---|---|---|
| T-Clamp (Single Bolt) | 50–150 mm² | Up to 400 A | Up to 33 kV | C83600 Bronze |
| T-Clamp (Multi-Bolt) | 120–400 mm² | Up to 1200 A | Up to 132 kV | C83600 / C95400 |
| Parallel Groove (PG) | 50–400 mm² | Up to 1000 A | Up to 66 kV | C83600 Bronze |
| Bolted Bus Connector | Flat Bus 50×6 to 120×12 mm | Up to 4000 A | Up to 400 kV | C95400 Al-Bronze |
| Flexible Substation Connector | 95–630 mm² equivalent | Up to 2500 A | Up to 220 kV | Bronze + Cu Braid |
| Earthing Grid Connector | 25–120 mm² earth conductor | Fault current rated | All voltages | C83600 Bronze |
Bronze Alloys Used in Substation Connectors
| Alloy | ASTM / UNS | BS / IS Standard | Key Properties |
|---|---|---|---|
| Leaded Tin Bronze (Gunmetal) | ASTM B62 / UNS C83600 | BS 1400 LG2 / IS 318 Gr.1 | Excellent machinability, corrosion resistant, widely used for substation connectors |
| Aluminum Bronze | ASTM B148 / UNS C95400 | BS 1400 AB1 / IS 305 | High tensile strength, excellent marine and industrial corrosion resistance |
| Silicon Bronze | ASTM B99 / UNS C65500 | BS 2872 / DIN CuSi3Mn1 | Excellent weldability, corrosion resistance, used for bolts and fasteners |
| Phosphor Bronze | ASTM B139 / UNS C51000 | BS 2874 PB102 / IS 7811 | High spring strength, fatigue resistance, good for spring contacts |
Applications of Bronze Substation Connectors
- HV and EHV outdoor substation bus bar connections (11 kV to 400 kV)
- Transformer terminal connections and tap connections
- Switchgear and circuit breaker terminal connections
- Capacitor bank connections and reactor terminal connections
- Substation earthing grid bonding and earth mat connections
- Lightning arrester and surge arrester grounding
- Power plant switchyard bus bar connections
- Renewable energy (solar farm, wind farm) substation connections
- Industrial plant substation connections and cable termination
Why Choose Cable Glands India for Bronze Substation Connectors?
- Manufactured from certified bronze alloys as per ASTM, BS, IS, DIN and IEC standards
- Available in T-clamp, parallel groove, bolted bus bar, flexible, and earthing grid connector types
- Custom conductor size, bus bar dimension, and alloy configurations available
- Tin-plated and silver-plated contact surfaces for superior conductivity and corrosion protection
- In-house foundry, machining, and testing — full traceability with mill test certificates
- Fast global delivery to UK, USA, UAE, Australia, South Africa, Southeast Asia and Middle East
Frequently Asked Questions (FAQs)
Why is bronze preferred over brass for substation connectors?
Bronze alloys (especially Aluminum Bronze and Gunmetal LG2) offer higher mechanical strength, better corrosion resistance, and superior performance in cyclic thermal environments compared to brass. Bronze substation connectors have a longer service life in outdoor and coastal substations.
Can bronze substation connectors be used with aluminum conductors?
Yes. Tin-plated bronze connectors are recommended for aluminum conductor connections to minimize galvanic corrosion at the interface. We offer bi-metallic variants for direct copper-to-aluminum jointing.
What surface finish is recommended for outdoor substation connectors?
Electro-tinned or silver-plated surfaces are recommended for outdoor substation environments to minimize oxidation, reduce contact resistance, and improve long-term reliability in high-humidity and coastal conditions.
Do you provide test certificates for bronze substation connectors?
Yes. We provide material test certificates (MTC), dimensional inspection reports, and conductivity test reports with every shipment. Third-party inspection (SGS, Bureau Veritas, NABL accredited labs) is available on request.
Get a Quote for Bronze Substation Connectors
Ready to source reliable bronze substation connectors for your HV/EHV substation project? Contact our team today with your requirements — connector type, conductor size, voltage rating, alloy grade, surface finish, and quantity. Our engineers will respond quickly with technical recommendations and a competitive quote.
