Bronze Marine Scoop Strainers – Cast Bronze NPT & BSP Thread Manufacturer
Cable Glands India is a leading manufacturer and exporter of Bronze Marine Scoop Strainers, also known as Bronze Sea Strainers or Bronze Intake Strainers. These are precision-cast marine fittings manufactured from high-quality bronze alloys, designed to filter seawater and other fluids entering a vessel’s hull through seacocks, cooling water intakes, and bilge systems. Our bronze scoop strainers are available in both NPT (National Pipe Thread) and BSP (British Standard Pipe) thread standards to suit international vessel requirements.
What Are Bronze Marine Scoop Strainers?

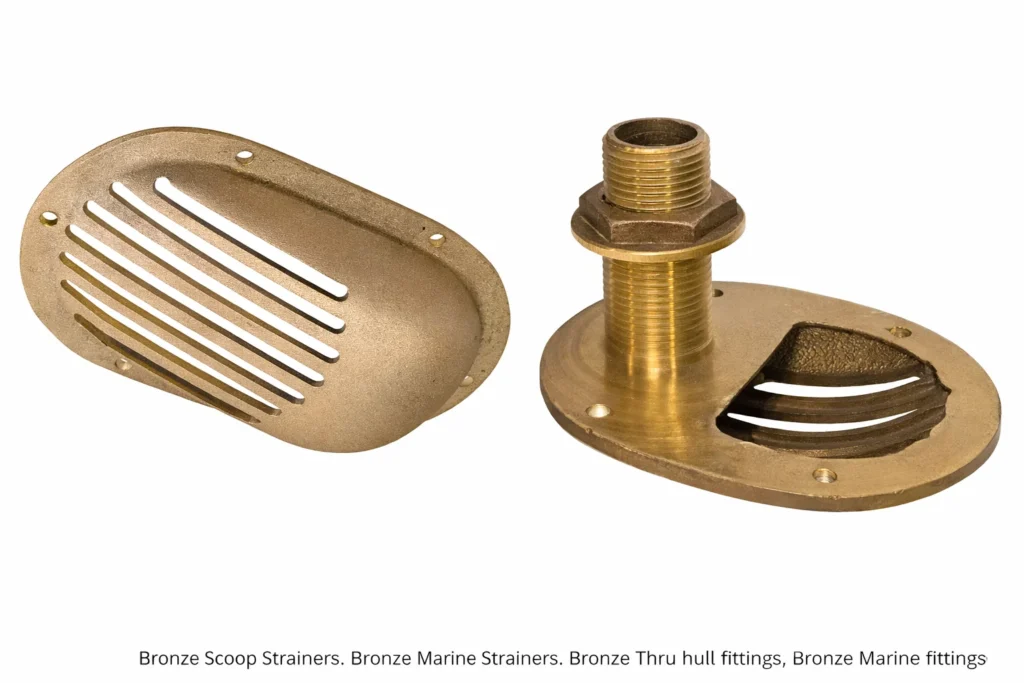

A marine scoop strainer is a through-hull bronze fitting that combines a scoop-shaped water intake with a strainer mesh or basket, preventing marine growth, debris, and foreign objects from entering the engine cooling system, refrigeration system, or bilge pump of a marine vessel. The scoop shape is designed to create a positive water flow toward the intake when the vessel is underway. Bronze is the material of choice for marine strainers due to its outstanding resistance to saltwater corrosion, dezincification, and biofouling compared to brass, plastic, or stainless steel alternatives in submerged marine applications.
Key Features
- Material: Cast Bronze (Gunmetal, Aluminum Bronze, Silicon Bronze)
- Thread Standard: NPT (1/2″ to 2″), BSP / BSPT (1/2″ to 2″)
- Strainer Mesh: Bronze or Stainless Steel (SS 316) mesh screen
- Body Type: Cast one-piece or two-piece body with removable strainer basket
- Working Pressure: Up to 10 bar (150 psi)
- Temperature Range: -10°C to +120°C
- Approvals: Lloyd’s Register, DNV, BV, ABS type pattern approval available
- Compliance: ASTM B62, BS 1400 LG2, IS 318, DIN 1705, ISO 228 (BSP)
Size Range & Technical Specifications
| Size (NPT / BSP) | Inlet Bore (mm) | Flow Rate (LPM) | Mesh Size | Body Material | Thread Standard |
|---|---|---|---|---|---|
| 1/2″ | 13 mm | Up to 45 LPM | 1.5 mm | Gunmetal / LG2 | NPT or BSP |
| 3/4″ | 19 mm | Up to 90 LPM | 1.5 mm | Gunmetal / LG2 | NPT or BSP |
| 1″ | 25 mm | Up to 180 LPM | 2.0 mm | Gunmetal / LG2 | NPT or BSP |
| 1-1/4″ | 32 mm | Up to 250 LPM | 2.0 mm | Gunmetal / Alum. Bronze | NPT or BSP |
| 1-1/2″ | 38 mm | Up to 360 LPM | 2.0 mm | Gunmetal / Alum. Bronze | NPT or BSP |
| 2″ | 50 mm | Up to 600 LPM | 3.0 mm | Alum. Bronze / NAB | NPT or BSP |
Bronze Alloys Used in Marine Scoop Strainers – US & International Comparison
| Alloy Name | US Standard (ASTM/UNS) | International Standard | Composition | Key Properties for Marine Use |
|---|---|---|---|---|
| Leaded Tin Bronze (Gunmetal / LG2) | ASTM B62 / UNS C83600 | BS 1400 LG2 / IS 318 Gr.1 / DIN 1705 GBz12 | Cu 85%, Sn 5%, Zn 5%, Pb 5% | Most widely used marine alloy; excellent seawater corrosion resistance, pressure tightness, good castability |
| Aluminum Bronze | ASTM B148 / UNS C95400 | BS 1400 AB1 / IS 305 / DIN CuAl10Fe3 | Cu 86%, Al 10%, Fe 4% | Excellent erosion-corrosion resistance in fast-flowing seawater, high strength |
| Nickel Aluminum Bronze (NAB) | ASTM B148 / UNS C95800 | BS 1400 AB2 / DIN CuAl10Fe5Ni5 / Lloyd’s spec | Cu 81%, Al 9%, Fe 5%, Ni 5% | Superior seawater cavitation and erosion resistance, preferred for naval and offshore applications |
| Silicon Bronze | ASTM B584 / UNS C87600 | BS 2872 CS101 / DIN CuSi3Mn1 | Cu 94.5%, Si 4.5%, Mn 1% | Excellent corrosion resistance in freshwater and mild seawater, good castability |
| Phosphor Bronze | ASTM B139 / UNS C52100 | BS 2874 PB103 / IS 7811 / DIN CuSn8 | Cu 92%, Sn 8%, P 0.2% | High hardness, excellent wear resistance for strainer baskets and mesh components |
| Naval Brass / Tobin Bronze | ASTM B21 / UNS C46400 | BS 2874 CZ112 / DIN CuZn38Sn1 | Cu 60%, Zn 39%, Sn 1% | Good resistance to dezincification in seawater, moderate strength |
| Manganese Bronze | ASTM B584 / UNS C86300 | BS 1400 HTB3 / DIN CuZn35Al2Mn2Fe1 | Cu 60%, Zn 35%, Al 2%, Mn 2%, Fe 1% | High strength and wear resistance, used for larger strainer bodies |
| Tin Bronze (High Tin) | ASTM B505 / UNS C90700 | BS 1400 PB1 / IS 318 Gr.3 / DIN GBz14 | Cu 89%, Sn 11% | High hardness and corrosion resistance, ideal for mesh screens and precision strainer parts |
NPT vs BSP Thread Standard for Bronze Marine Strainers
| Feature | NPT (National Pipe Thread) | BSP (British Standard Pipe) |
|---|---|---|
| Standard | ANSI/ASME B1.20.1 (USA) | ISO 7/1, BS 21 (UK, International) |
| Thread Form | Tapered, 60° angle | Tapered (BSPT) or Parallel (BSPP), 55° angle |
| Seal Method | Thread interference (use PTFE tape) | Thread (BSPT) or O-ring/washer (BSPP) |
| Common Use | USA, Canada, Mexico | UK, Europe, India, Australia, Middle East, Asia |
| Interchangeable? | No – NPT and BSP are NOT directly interchangeable | |
Applications of Bronze Marine Scoop Strainers
- Engine cooling water intake on diesel and petrol marine engines
- Refrigeration and air conditioning seawater circuits on vessels
- Bilge pump suction strainers on yachts, motorboats, and commercial vessels
- Fire fighting and deck wash seawater intake systems
- Watermakers (reverse osmosis desalination systems) raw water intakes
- Aquaculture tank water intake systems
Why Choose Cable Glands India for Bronze Marine Scoop Strainers?
- Cast from premium marine-grade bronze alloys (Gunmetal LG2, Aluminum Bronze, NAB)
- Available in both NPT and BSP thread standards in 1/2″ to 2″ sizes
- Type pattern approval options: Lloyd’s Register, DNV, BV, ABS
- Custom body configurations, mesh sizes, and flanged connections available
- Exported globally: UK, USA, UAE, Australia, Singapore, South Africa, Europe
Frequently Asked Questions (FAQs)
What is a Bronze Marine Scoop Strainer?
A bronze marine scoop strainer is a through-hull fitting cast from bronze that combines a scoop-shaped water intake with a strainer basket or mesh. It is installed below the waterline on a vessel to filter seawater entering the engine cooling, refrigeration, or bilge systems, preventing debris and marine growth from causing pump or system damage.
What is the difference between NPT and BSP threads on bronze strainers?
NPT (National Pipe Thread) is the US standard (ANSI/ASME B1.20.1) with a 60° thread angle, while BSP (British Standard Pipe) is the international standard used in the UK, Europe, India, Australia, and Asia, with a 55° thread angle. They are not directly interchangeable. Cable Glands India supplies both standards; please specify when ordering.
What bronze alloy is best for marine scoop strainers?
Gunmetal / Leaded Tin Bronze (ASTM B62 / C83600, BS 1400 LG2) is the most commonly used alloy for marine strainers due to its proven seawater corrosion resistance, pressure tightness, and excellent castability. Nickel Aluminum Bronze (C95800 / NAB) is preferred for naval and offshore high-performance applications.
Do your bronze scoop strainers come with classification society approval?
Yes. We can supply bronze marine scoop strainers with Lloyd’s Register, DNV GL, Bureau Veritas (BV), or American Bureau of Shipping (ABS) type approval documentation upon request for commercial vessel applications.
Can I use a Bronze Scoop Strainer in freshwater applications?
Yes. Bronze scoop strainers are equally suitable for freshwater intake applications in vessels operating in rivers, lakes, and canals. The corrosion resistance of bronze alloys in freshwater typically exceeds that in seawater, extending service life further.
Get a Quote for Bronze Marine Scoop Strainers
Contact us by email or phone to discuss your requirements for Bronze Marine Scoop Strainers — including pipe size, thread standard (NPT or BSP), bronze alloy grade (Gunmetal LG2, Aluminum Bronze, NAB), classification society approval, quantity, and delivery. Our engineers will be happy to assist and quote you quickly.
