Ground Rod Couplers & Earth Rod Couplers in Bronze – Threaded & Swaged, 1/2″, 5/8″, 3/4″
Cable Glands India is a leading manufacturer and exporter of Ground Rod Couplers and Earth Rod Couplers in Bronze, used for joining two sections of driven earth rods (ground rods) end-to-end during deep earthing electrode installation. Available in standard sizes of 1/2 inch, 5/8 inch, and 3/4 inch, our bronze earth rod couplers are supplied in both Threaded Type (internally threaded bronze coupling) and Swaged Type (compression / crimp-fit coupling) to suit different installation methods and rod types. Both types are manufactured from high-conductivity, corrosion-resistant bronze alloys suitable for permanent buried applications.
What Are Ground Rod Couplers?

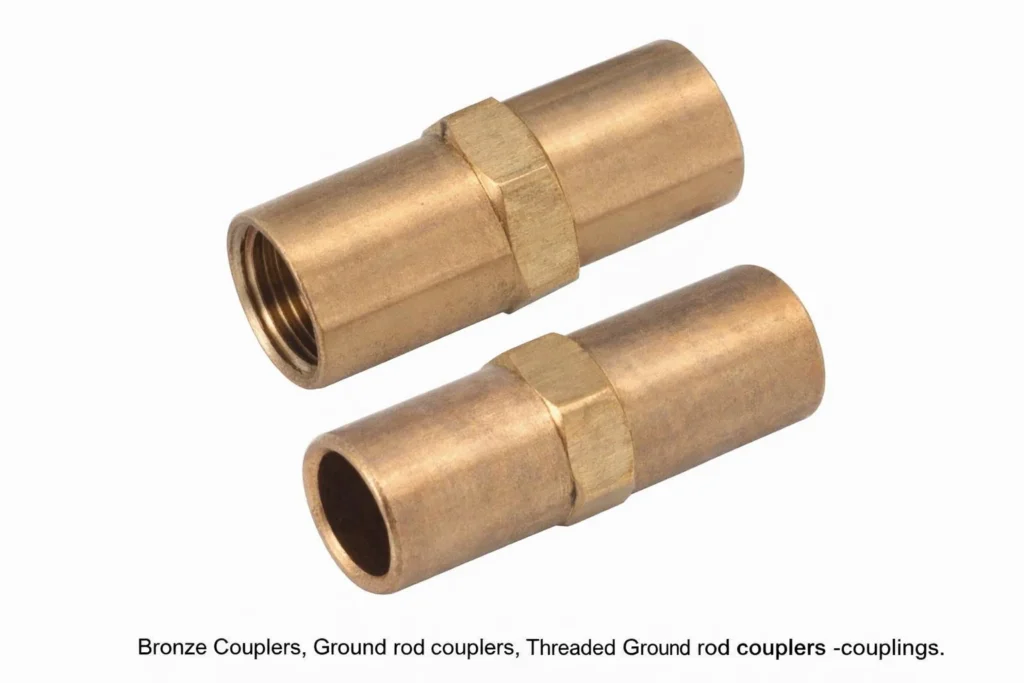

A ground rod coupler (also called an earth rod coupler, earth rod jointing sleeve, or earth electrode extension coupling) is a bronze fitting that joins two sections of an earth rod together to achieve greater installation depth when soil conditions require it. Standard earth rods are typically available in 1-metre or 1.5-metre lengths; couplers allow multiple rods to be joined and driven progressively deeper. The two main coupling types are: Threaded Couplers (which screw onto pre-threaded rod ends) and Swaged Couplers (also called compression couplers or crimp couplers, which are mechanically pressed or crimped onto the rod ends). Bronze is specified because it provides excellent corrosion resistance in buried environments and maintains electrical continuity at the rod joint over the full design life of the earthing system.
Key Features
- Material: Cast Bronze / Forged Bronze (Gunmetal, Leaded Bronze, Aluminum Bronze, Silicon Bronze)
- Types: Threaded Coupler (internally threaded), Swaged / Compression Coupler (crimp-fit)
- Earth Rod Sizes: 1/2″ (12.5 mm), 5/8″ (16 mm), 3/4″ (19 mm) diameter
- Thread Standard: UNC (US), Metric (M12, M16, M20), or BSW as per rod specification
- Rod Types: Copper-bonded steel, solid copper, stainless steel, galvanized steel earth rods
- Swaged Type: Hex-body or round-body for hydraulic or mechanical pressing tool
- Compliance: UL 467, IEEE 837, BS 7430, IS 3043, IEC 62561-1, NEC Article 250
Size Range & Technical Specifications
| Part No. | Rod Size (Imperial) | Rod Diameter (mm) | Coupler Type | Thread / Swage Spec | Body Material |
|---|---|---|---|---|---|
| ERC-1/2-T | 1/2″ (Half Inch) | 12.5 mm | Threaded | UNC 1/2″-13 Internal Thread | Cast Bronze C83600 |
| ERC-1/2-S | 1/2″ (Half Inch) | 12.5 mm | Swaged / Compression | 12.5 mm bore, hex swage body | Cast Bronze C83600 |
| ERC-5/8-T | 5/8″ (Five-eighth) | 16 mm | Threaded | UNC 5/8″-11 Internal Thread | Cast Bronze C83600 |
| ERC-5/8-S | 5/8″ (Five-eighth) | 16 mm | Swaged / Compression | 16 mm bore, hex swage body | Cast Bronze C83600 |
| ERC-5/8-T-AL | 5/8″ (Five-eighth) | 16 mm | Threaded (High Strength) | UNC 5/8″-11 Internal Thread | Alum. Bronze C95400 |
| ERC-3/4-T | 3/4″ (Three-quarter) | 19 mm | Threaded | UNC 3/4″-10 Internal Thread | Cast Bronze C83600 |
| ERC-3/4-S | 3/4″ (Three-quarter) | 19 mm | Swaged / Compression | 19 mm bore, hex swage body | Cast Bronze C83600 |
| ERC-3/4-T-AL | 3/4″ (Three-quarter) | 19 mm | Threaded (High Strength) | UNC 3/4″-10 Internal Thread | Alum. Bronze C95400 |
Threaded vs Swaged Ground Rod Couplers – Comparison
| Feature | Threaded Bronze Coupler | Swaged / Compression Bronze Coupler |
|---|---|---|
| Connection Method | Screws onto pre-threaded rod ends (UNC or metric) | Mechanically pressed/crimped onto plain or knurled rod ends |
| Rod Requirement | Earth rods must have threaded ends (factory-threaded) | Compatible with both threaded and plain-end rods |
| Electrical Continuity | Excellent (full metal-to-metal thread contact) | Excellent (permanent compression bond, no thread gaps) |
| Installation Tool | Driving head / wrench during rod installation | Hydraulic or mechanical swaging tool |
| Reversibility | Can be unscrewed if required | Permanent joint (cannot be undone) |
| Common Use | Standard earthing installations globally | High-vibration or critical permanent earthing systems |
| Standards | UL 467, IEEE 837, BS 7430, IS 3043 | IEEE 837, BS 7430, IEC 62561-1 |
Bronze Alloys Used in Ground Rod Couplers – US & International Comparison
| Alloy Name | US Standard (ASTM/UNS) | International Standard | Composition | Key Properties for Buried Couplers |
|---|---|---|---|---|
| Leaded Tin Bronze (Gunmetal) | ASTM B62 / UNS C83600 | BS 1400 LG2 / IS 318 Gr.1 / DIN 1705 GBz12 | Cu 85%, Sn 5%, Zn 5%, Pb 5% | Most widely used earth rod coupler alloy; excellent soil corrosion resistance, pressure-tight casting, good thread machinability |
| Phosphor Bronze | ASTM B139 / UNS C51000 | BS 2874 PB102 / IS 7811 / DIN CuSn5 | Cu 94.8%, Sn 5%, P 0.2% | High tensile strength, excellent fatigue and wear resistance for threaded couplers under repeated driving loads |
| Aluminum Bronze | ASTM B148 / UNS C95400 | BS 1400 AB1 / IS 305 / DIN CuAl10Fe3 | Cu 86%, Al 10%, Fe 4% | High tensile strength (600 MPa+), excellent corrosion resistance in polluted soils, chemical environments |
| Silicon Bronze | ASTM B99 / UNS C65500 | BS 2872 CS101 / DIN CuSi3Mn1 | Cu 97%, Si 3%, Mn 1% | Excellent corrosion resistance in aggressive buried environments; ideal for swaged/compression couplers |
| Manganese Bronze | ASTM B138 / UNS C67500 | BS 2874 / DIN CuZn37Mn3Al2 | Cu 58%, Zn 37%, Mn 3%, Al 2% | High mechanical strength for deep-driving applications where significant torque is applied to couplers |
| Naval Brass / Tobin Bronze | ASTM B21 / UNS C46400 | BS 2874 CZ112 / DIN CuZn38Sn1 | Cu 60%, Zn 39%, Sn 1% | Good dezincification resistance, moderate strength, suitable for mild soil conditions |
| Tin Bronze (High Tin) | ASTM B505 / UNS C90700 | BS 1400 PB1 / IS 318 Gr.3 / DIN 2.1050 | Cu 89%, Sn 11% | High hardness and wear resistance, excellent corrosion resistance for long-service buried couplers |
| Nickel Aluminum Bronze | ASTM B148 / UNS C95800 | BS 1400 AB2 / DIN CuAl10Fe5Ni5 | Cu 81%, Al 9%, Fe 5%, Ni 5% | Superior corrosion resistance for offshore, coastal, and highly aggressive soil earthing systems |
Applications of Bronze Ground Rod Couplers
- Extension of standard 1m or 1.5m earth rods to achieve target earth resistance in high-resistivity soils
- Deep earthing systems for high-voltage substations, data centres, and industrial facilities
- Lightning protection system (LPS) deep earth electrode systems per IEC 62305
- Telecommunications base station and tower earthing
- Offshore platform, marine, and coastal earthing systems
- Renewable energy (solar and wind) substation and inverter earthing
- Railway signalling and traction earthing infrastructure
Why Choose Cable Glands India for Bronze Earth Rod Couplers?
- Available in threaded and swaged (compression) types in 1/2″, 5/8″, and 3/4″ earth rod sizes
- Manufactured from premium bronze alloys: Gunmetal LG2 (C83600), Aluminum Bronze (C95400), Silicon Bronze (C65500)
- UL 467, IEEE 837, BS 7430, IS 3043, IEC 62561-1 compliant
- Compatible with copper-bonded steel, solid copper, stainless steel, and galvanized steel earth rods
- Global export: UK, USA, UAE, Australia, South Africa, Singapore, Europe
Frequently Asked Questions (FAQs)
What is the difference between a threaded and a swaged ground rod coupler?
A threaded bronze coupler screws onto the pre-threaded ends of earth rods and can be removed if needed. A swaged (compression) coupler is mechanically pressed or crimped onto the rod ends using a hydraulic tool, creating a permanent and highly secure joint. Swaged couplers are preferred for critical installations where vibration or soil movement might loosen a threaded connection.
What sizes are your bronze earth rod couplers available in?
Our bronze ground rod couplers are available in 1/2 inch (12.5 mm), 5/8 inch (16 mm), and 3/4 inch (19 mm) earth rod diameters in both threaded and swaged types, to match standard copper-bonded, solid copper, and stainless steel earth rods.
Can I use a bronze coupler with a copper-bonded steel earth rod?
Yes. Bronze couplers are galvanically compatible with copper-bonded steel earth rods. In fact, using a bronze coupler is preferred over a steel or zinc coupler in direct-burial earthing systems because bronze and copper-bonded rods form a stable electrochemical pair with minimal galvanic corrosion risk.
What thread standard is used for ground rod couplers?
The most common thread standard for 1/2″, 5/8″, and 3/4″ earth rods is UNC (Unified National Coarse – US). Metric threads (M12, M16, M20) are also available for European and international rods. Please specify the thread standard when ordering.
What is the current-carrying capacity of bronze earth rod couplers?
As the coupler is a metallic bronze sleeve that forms a continuous path between two earth rod sections, its current-carrying capacity matches or exceeds that of the rod itself (typically rated for fault currents up to 10 kA or higher per IEEE 837 test requirements, depending on coupler diameter and material).
Get a Quote for Bronze Ground Rod Couplers
Contact us by email or phone to discuss your requirements for Bronze Ground Rod Couplers and Earth Rod Couplers — including earth rod diameter (1/2″, 5/8″, or 3/4″), coupler type (threaded or swaged), thread standard (UNC or metric), compatible rod type, quantity, and delivery destination. Our engineers will be happy to assist and quote you quickly.
