Wiping Glands

Wiping Glands

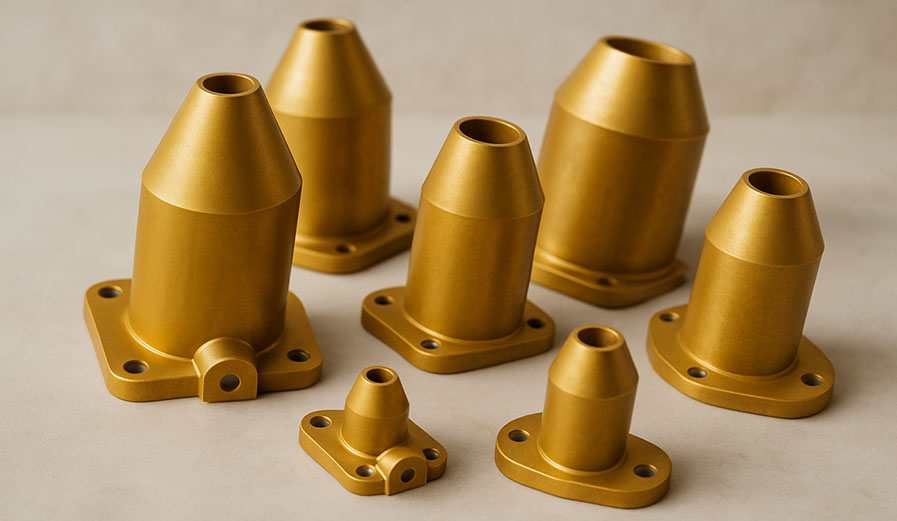

Reliable Brass Glands for Indoor Applications

Wiping Glands are specially designed for use with SWA, plastic, and rubber (elastomer) sheathed cables, offering dependable performance in dry indoor conditions. These glands ensure safe and secure termination with minimal cable movement.

Wiping Gland “Z”

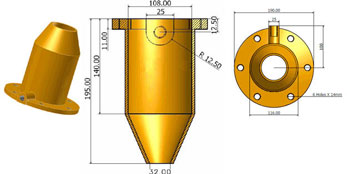

Wiping Gland Z Dimensions

Gland Size Dai. over metal sheath A B ØC ØD E F ØJ
Z 25 to 94 195 140 108 32 190 100 14
Wiping Gland “X” and “Y”

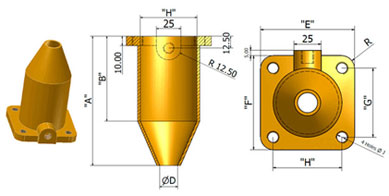

Wiping Gland X and Y Dimensions

Gland Size Dai. over metal sheath A B ØC ØD E F ØJ
Z 25 to 94 195 140 108 32 190 100 14

Wiping Glands are traditional cable gland solutions designed specifically for lead sheathed cables and paper insulated cables, widely used in legacy power systems and heavy industrial installations. We are one of the leading manufacturers and exporters of Wiping Glands from India. We have been supplying Industrial Cable Glands and Brass Cable Accessories to the world market for many decades. Our Wiping Glands are manufactured using high-grade Brass and precision machining to ensure secure cable retention, effective environmental sealing, and long-term mechanical durability. These glands are commonly used in Power Plants, Substations, Heavy Industrial Units, Refineries, Railways, and Infrastructure Projects where lead sheathed cable terminations are required.

Overview – Industrial Wiping Cable Glands

Wiping Glands are specially designed for use with lead sheathed cables where the lead sheath is wiped or soldered to create a secure and moisture-resistant joint. These glands provide mechanical cable support and maintain earthing continuity in electrical installations.

Key Features:

  • Designed for Lead Sheathed Cables

  • Secure mechanical retention

  • Reliable earthing continuity

  • Corrosion-resistant Brass body

  • Suitable for indoor and industrial environments

  • Custom thread configurations available

Wiping Glands are often used in older power infrastructure systems where paper insulated lead covered (PILC) cables are installed.

Material Grades & International Standards

Our Wiping Glands are manufactured using premium Brass grades compliant with international standards.

Material Grades

Component Material Standard
Body & Nut Brass IS 319 Type 1 India
Equivalent CW614N EN (Europe)
Equivalent ASTM B16 USA
Equivalent JIS H3250 Japan
Equivalent GB H59 China
Washer / Seals Lead / Rubber (as required) Compliant

Applicable Standards

Standard Description
BS 6121 Cable Gland Standard
IEC 62444 Cable Gland Requirements
IS 12943 Indian Cable Gland Standard
IEC 60529 IP Protection Standard

Finish Options:

  • Natural Brass

  • Nickel Plated Brass

  • Custom Finishes as Required

Construction & Working Principle

A Wiping Gland generally consists of:

  1. Brass Gland Body (Threaded Entry)

  2. Compression Nut

  3. Wiping Washer / Lead Sleeve

  4. Lock Nut (Optional)

Size & Dimensional Chart – Wiping Glands

Gland Size Entry Thread Cable Diameter Range Across Flats
20 1/2″ BSP 8 – 14 mm 24 mm
25 3/4″ BSP 14 – 20 mm 30 mm
32 1″ BSP 20 – 26 mm 36 mm
40 1 1/4″ BSP 26 – 32 mm 46 mm
50 1 1/2″ BSP 32 – 38 mm 55 mm
63 2″ BSP 38 – 44 mm 65 mm

(Custom sizes and threads available upon request)

Physical & Mechanical Properties

Property Typical Value
Material Strength High
Corrosion Resistance Excellent
Operating Temperature -20°C to +100°C
Mechanical Retention Strong
Surface Finish Smooth & Burr-Free
Plating Thickness 8–12 Microns (Nickel, if required)

Manufacturing Process & Machinery Used

Our Wiping Glands are manufactured in India using precision CNC machining and strict quality control procedures.

Manufacturing Steps:

  • Brass Rod Cutting

  • CNC Turning & Threading

  • Knurling

  • Washer Preparation

  • Surface Finishing

  • Optional Electroplating

  • Final Inspection

Machinery Used:

  • CNC Automatic Lathes

  • Thread Rolling Machines

  • Drilling & Tapping Machines

  • Electroplating Units

  • IP Testing Equipment

Quality Checks Include:

  • Thread Gauge Testing

  • Dimensional Verification

  • Surface Finish Inspection

  • Mechanical Strength Testing

Turnaround Time: 4–6 Weeks

Applications & Industries

Wiping Glands are widely used in:

  • Power Generation Plants

  • Electrical Substations

  • Heavy Industrial Installations

  • Oil & Gas Facilities

  • Railway Electrification

  • Legacy Power Distribution Networks

  • Infrastructure Projects

They are often installed with:

  • Brass Lock Nuts

  • Brass Earthing Tags

  • Brass Neutral Links

  • Brass Cable Glands

  • Stainless Steel Cable Glands

Tolerances & Quality Control

Parameter Specification
Dimensional Tolerance ±0.05 mm
Thread Standard BSP / Metric / NPT
Surface Finish Smooth
Material Certification Available
Inspection Reports Provided on Request

All products are manufactured under export-grade quality control standards.

Packaging & Export Shipping

  • Individual Polybag Packing

  • Bulk Industrial Packaging

  • Customized Branding & Labeling

  • Export-Grade Corrugated Boxes

  • Palletized Shipments

We export Wiping Glands globally to USA, UK, Europe, Middle East, Africa, and Southeast Asia.

Why Choose Our Wiping Glands?

With over three decades of experience in manufacturing Brass Cable Accessories, we provide:

  • Precision CNC manufacturing

  • Custom thread and size options

  • High corrosion resistance

  • Competitive export pricing

  • Flexible production volumes

  • Technical support & documentation

  • Reliable 4–6 week delivery schedule

  • Strong global supply network

Our expertise in traditional and modern cable gland solutions makes us a trusted supplier worldwide.

Frequently Asked Questions (FAQ)

  1. What is a Wiping Gland used for?
    It is used for lead sheathed cable termination.

  2. Are these suitable for modern XLPE cables?
    Primarily designed for lead sheathed cables.

  3. What thread types are available?
    BSP, Metric, and NPT.

  4. Can you provide Nickel plated glands?
    Yes.

  5. What is your production lead time?
    4–6 weeks.

  6. Do you export internationally?
    Yes.

  7. Are custom sizes available?
    Yes.

  8. Are these corrosion resistant?
    Yes.

  9. Do you provide inspection certificates?
    Yes.

  10. Can bulk orders be supplied?
    Yes.

Glossary of Technical Terms

Wiping – Process of sealing lead sheath using solder or wiping compound.
Lead Sheathed Cable – Cable with outer lead protective covering.
Cable Gland – Device securing cable entry to equipment.
Thread Tolerance – Permissible deviation in thread dimensions.
Ingress Protection – Resistance to dust and moisture.

Related Parts

  • Brass BW Cable Glands

  • Brass CW Cable Glands

  • Brass E1W Cable Glands

  • Brass A1 Cable Glands

  • Brass A2 Cable Glands

  • Brass Earthing Tags

  • Brass Lock Nuts

  • Stainless Steel Cable Glands

Call To Action

Request a quote today.

Email: sales@cableglandsindia.com
Phone / WhatsApp: +91-22-43449300
Website: www.cableglandsindia.com

Share your project specifications, required quantities, and preferred delivery timeline — and we’ll respond with a detailed quotation within one business day.

Product Categories
