Tinned Brass Line Taps Split Bolt Connectors

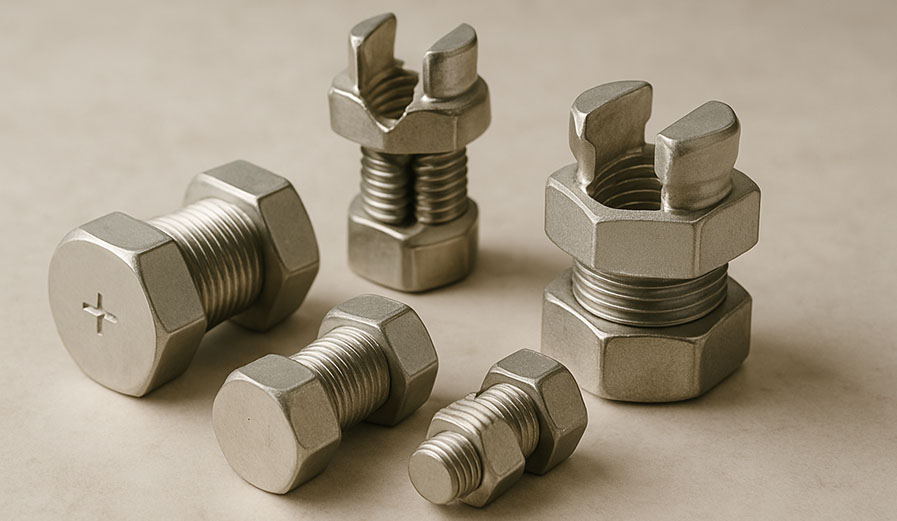

Tinned Brass Line Taps – Split Bolt Connectors

Tinned Brass Line Taps (Split Bolt Connectors) are high-conductivity electrical connectors used for joining, tapping, and branching conductors in power distribution and grounding systems. We are one of the leading manufacturers and exporters of Tinned Brass Line Taps from India. We have been supplying Brass Electrical Connectors and Split Bolt Connectors to the world market for many decades. Manufactured using high-grade Brass and electro-tinned for superior corrosion resistance, our Split Bolt Line Taps provide strong mechanical grip, low contact resistance, and long service life in demanding industrial environments. These connectors are widely used in Overhead Line Installations, Earthing Systems, Transformer Yards, Distribution Networks, and Industrial Electrical Projects worldwide.

Overview – Tinned Brass Split Bolt Connectors

Tinned Brass Line Taps, commonly known as Split Bolt Connectors, are designed to join Copper or Aluminium conductors securely. The split bolt mechanism allows multiple conductors to be clamped together with high mechanical strength and excellent electrical conductivity.

Key Functional Benefits:

  • High electrical conductivity

  • Strong mechanical clamping force

  • Corrosion-resistant tinned surface

  • Suitable for grounding and line tapping

  • Reusable and easy to install

  • Compatible with Copper conductors

The electro-tinned coating enhances oxidation resistance and improves long-term performance in outdoor and high-humidity environments.

Material Grades & International Standards

Our Tinned Brass Line Taps are manufactured using premium-grade Brass and conform to international quality standards.

Material Grades

Component Material Equivalent Standards
Body Brass IS 319 Type 1 India
Equivalent CW614N EN (Europe)
Equivalent ASTM B16 USA
Equivalent JIS H3250 Japan
Equivalent GB H59 China
Finish Electro-Tinned RoHS Compliant

Applicable Standards

Standard Description
UL 486A-486B Wire Connectors
IEC 61238 Compression & Mechanical Connectors
IS 5561 Electrical Connectors
RoHS Environmental Compliance

Physical & Electrical Properties

Property Typical Value
Electrical Conductivity Excellent
Tensile Strength 300–550 MPa
Corrosion Resistance High (Tinned Surface)
Operating Temperature -20°C to +150°C
Contact Resistance Low
Plating Thickness 8–15 Microns (Tin)

The Tin plating enhances conductivity at contact surfaces and prevents surface oxidation.

Construction & Working Principle

The Split Bolt Connector consists of:

  1. Brass Body (Split Thread Design)

  2. Threaded Bolt

  3. Hex Head for Tightening

Size & Conductor Range Chart

Size Conductor Range (mm²) Bolt Size Typical Application
Small 2.5 – 10 mm² M6 Control Panels
Medium 10 – 35 mm² M8 Distribution Boards
Large 35 – 70 mm² M10 Power Systems
Extra Large 70 – 120 mm² M12 Transformer Earthing
Heavy Duty 120 – 240 mm² M16 Industrial Substations

(Custom conductor ranges available)

Manufacturing Process & Machinery Used

Our Tinned Brass Split Bolt Connectors are manufactured in India using advanced machining and plating facilities.

Manufacturing Steps:

  • Brass Rod Cutting

  • CNC Turning & Threading

  • Slot Cutting

  • Thread Rolling

  • Deburring

  • Electro-Tinning Process

  • Quality Inspection

Machinery Used:

  • CNC Automatic Lathes

  • Thread Rolling Machines

  • Milling Machines

  • Electroplating Units

  • Torque Testing Equipment

  • Digital Vernier & Gauges

Each batch undergoes:

  • Thread Accuracy Testing

  • Torque Testing

  • Conductivity Testing

  • Surface Finish Inspection

  • Salt Spray Corrosion Test

Turnaround Time: 4–6 Weeks

Performance Metrics

Parameter Performance
Current Carrying Capacity As per conductor size
Torque Strength High Mechanical Grip
Corrosion Resistance 96–500 Hours Salt Spray
Vibration Resistance Suitable for Outdoor Use
Reusability Yes

Applications & Industries

Tinned Brass Line Taps (Split Bolt Connectors) are widely used in:

  • Overhead Transmission Lines

  • Grounding & Earthing Systems

  • Transformer Installations

  • Electrical Substations

  • Railway Electrification

  • Solar Power Plants

  • Wind Energy Projects

  • Industrial Power Distribution

  • Telecom Tower Grounding

They are commonly installed with:

  • Brass Earthing Terminals

  • Brass Neutral Links

  • Brass Busbars

  • Brass Cable Glands

  • Copper Conductors

Tolerances & Quality Control

Parameter Specification
Dimensional Tolerance ±0.05 mm
Thread Standard ISO Metric
Plating Thickness 8–15 Microns
Surface Finish Smooth & Burr-Free
Material Certification Available

All products are RoHS compliant and manufactured under strict quality control standards.

Packaging & Global Export

  • Individual Polybag Packing

  • Bulk Industrial Packaging

  • Custom Branding & Labeling

  • Export-Grade Corrugated Boxes

  • Palletized Shipments

We export globally to USA, UK, Europe, Middle East, Africa, and Southeast Asia.

Why Choose Our Tinned Brass Line Taps?

With over three decades of global export experience, we offer:

  • High conductivity Brass material

  • Precision CNC manufacturing

  • Superior Tin plating quality

  • Competitive export pricing

  • Custom conductor sizes

  • Flexible production capacity

  • Strong technical communication

  • Reliable 4–6 week delivery

Our commitment to quality, customization, and global supply reliability makes us a trusted manufacturer of Split Bolt Connectors.

Frequently Asked Questions (FAQ)

  1. What is a Split Bolt Connector used for?
    It joins or taps electrical conductors securely.

  2. Are these suitable for outdoor applications?
    Yes, especially with Tin plating.

  3. Can they connect Aluminium conductors?
    Primarily designed for Copper; special versions available.

  4. What plating is used?
    Electro-Tinned finish.

  5. Are they reusable?
    Yes.

  6. What conductor sizes are supported?
    From 2.5 mm² up to 240 mm².

  7. What is the production lead time?
    4–6 weeks.

  8. Do you export internationally?
    Yes.

  9. Are test certificates available?
    Yes.

  10. Can you supply custom designs?
    Yes.

Glossary of Technical Terms

Split Bolt Connector – Mechanical connector used to join conductors.
Line Tap – Connector used to branch off a main conductor.
Tin Plating – Coating applied to prevent corrosion.
Contact Resistance – Resistance at conductor connection point.
Torque – Rotational force applied during tightening.
