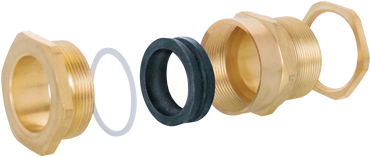

A1 A2 Industrial Cable Glands
Secure and Versatile Cable Protection
Our A1 A2 Industrial Cable Glands are expertly engineered to provide reliable protection and strain relief for unarmoured cables with rubber outer sheaths. These robust brass glands are suitable for both indoor and outdoor applications, ensuring secure and weatherproof cable connections in diverse environments.
Key Features
- Durable Brass Construction: Manufactured from high-quality brass for long-lasting performance and corrosion resistance.
- Displacement Seal Design: Creates a secure seal by displacing the cable’s outer sheath, ensuring a tight and reliable connection.
- Versatile Application: Suitable for indoor and outdoor use, providing excellent protection against dust, moisture, and other environmental factors.
- CIEL Option Available: Available with a Cast Integral Earth Lug (CIEL) for added grounding and safety. Simply add “C” to the product code when ordering.
Ideal for
- Industrial machinery and equipment
- Power distribution systems
- Outdoor lighting installations
- Construction sites
- Any application requiring secure and weatherproof cable connections
Ideal for
- Enhanced Safety: Provides a secure and reliable cable connection, minimizing the risk of electrical hazards.
- Improved Durability: Robust construction ensures long-lasting performance in demanding environments.
- Weatherproof Protection: Protects cables from moisture, dust, and other external elements.
- Easy Installation: Simple and straightforward installation process.
Choose Brass Cable Glands & Copper Terminals Lugs India for high-quality A1 A2 Industrial Cable Glands that ensure secure and reliable cable connections in any environment.
| Size | Under Armour Dia. A Max. mm | Overall Dia. B Max. mm | Armour Wire Dia. C mm | ISO Entry Thread Dia. Length |
Approx Length from Shroud | Hexagon Size Across Across Flat Corners |
Product Code | ||
| D mm | E mm | G mm | H mm | ||||||
| 16 | 8.60 | 13.50 | 0.90 | 16 | 10 | 40.00 | 20.00 | 23.00 | HA2W-16 |
| 20 S | 12.50 | 17.00 | 0.90/1.25 | 20 | 10 | 42.00 | 24.00 | 28.00 | HA2-20 S |
| 20 | 14.40 | 20.50 | 0.90/1.25 | 20 | 10 | 42.00 | 27.00 | 31.00 | HA2-20 |
| 25 S | 17.80 | 23.80 | 1.25/1.60 | 25 | 10 | 44.00 | 31.00 | 34.00 | HA2-25 S |
| 25 | 20.40 | 27.00 | 1.25/1.60 | 25 | 10 | 45.00 | 34.30 | 38.50 | HA2-25 |
| 32 | 26.50 | 33.00 | 1.60/2.00 | 32 | 10 | 50.00 | 41.50 | 46.50 | HA2-32 |
| 40 S | 31.00 | 37.00 | 1.60/2.00 | 40 | 10 | 51.00 | 45.00 | 50.00 | HA2-40 S |
| 40 | 32.50 | 40.80 | 1.60/2.00 | 40 | 10 | 51.00 | 49.00 | 54.00 | HA2-40 |
| 50 S | 37.80 | 48.00 | 2.00/2.50 | 50 | 15 | 55.00 | 58.00 | 65.00 | HA2-50 S |
| 50 | 44.00 | 53.50 | 2.00/2.50 | 50 | 15 | 55.00 | 62.30 | 69.50 | HA2-50 |
| 63 S | 50.50 | 60.50 | 2.50 | 63 | 15 | 59.00 | 70.00 | 78.00 | HA2-63 S |
| 63 | 56.50 | 65.50 | 2.50 | 63 | 15 | 59.00 | 76.30 | 85.00 | HA2-63 |
| 75 S | 62.50 | 72.00 | 2.50 | 75 | 15 | 64.00 | 85.00 | 95.00 | HA2-75 S |
| 75 | 67.50 | 78.50 | 2.50/3.15 | 75 | 15 | 65.00 | 90.50 | 99.00 | HA2-75 |
| 90 | 80.00 | 94.00 | 3.15 | 90 | 20 | 75.00 | 112.00 | 125.00 | HA2W-90 |
